Thomson Reserve · Floor plans

Find your
way home.

The layout makes
the difference.

Explore every plan by bedroom count. Each drawing shows the room arrangement, its floor area and where that layout appears.

Explore the layouts

01 The layouts

41 plans. A place
to begin.

Start with the number of bedrooms. Open a drawing for a closer look, or save the complete set for later. The written layout notes describe each drawing as shown; some units are mirrored.

Download all floor plans (PDF) See the site plan
2 bedrooms19 layouts

Classic Collection 12 plans

Type B1

2-bedroom

592 sqft

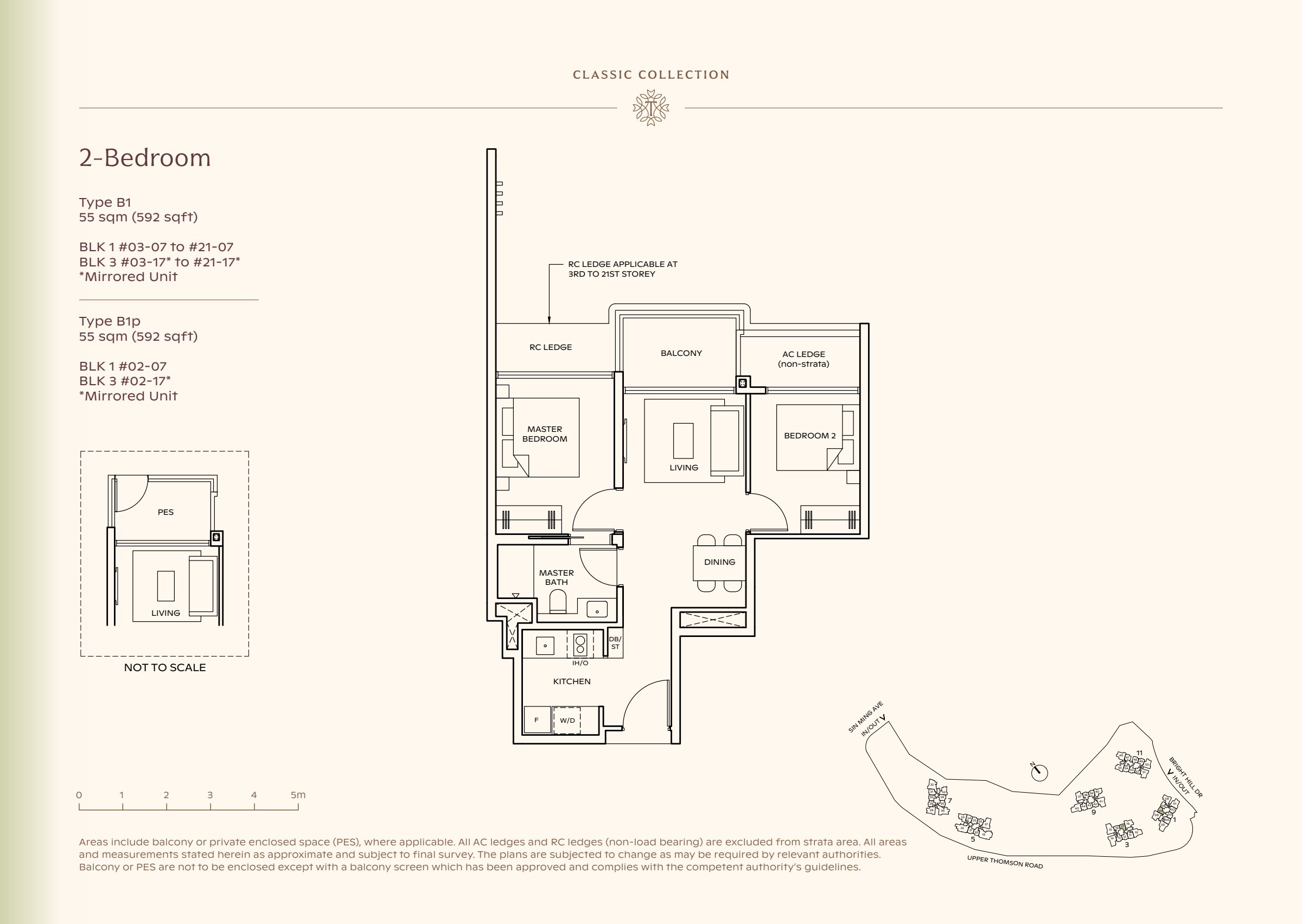

Classic Collection type B1, 592 sqft. Bedrooms flank the living room; the kitchen sits to the left of dining. 2 bedrooms, living and dining space, a kitchen, 1 bathrooms, a balcony.

Bedrooms flank the living room; the kitchen sits to the left of dining.

Blocks 1, 3View full size

Type B2

2-bedroom

592 sqft

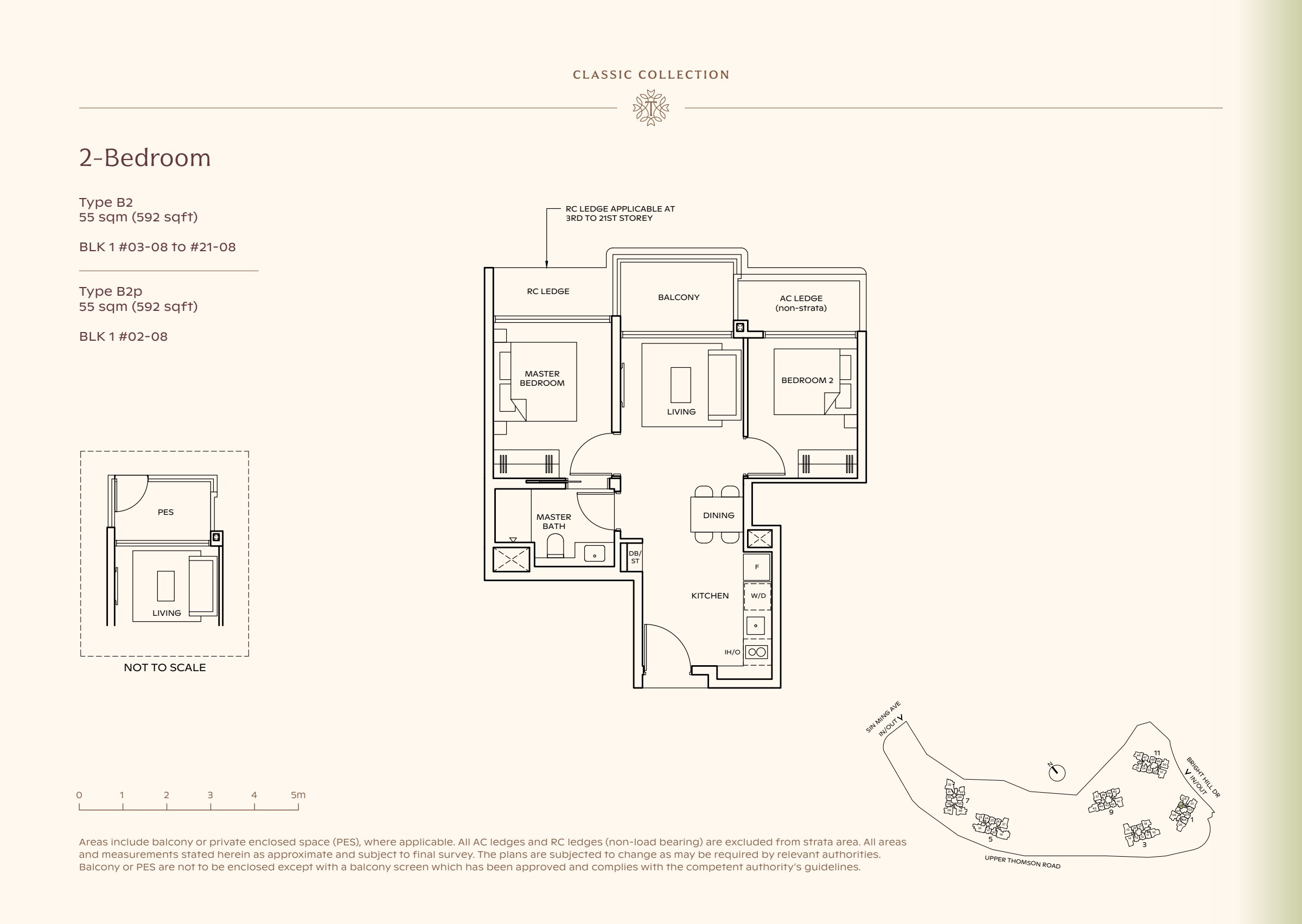

Classic Collection type B2, 592 sqft. Bedrooms flank the living room; the kitchen sits behind dining. 2 bedrooms, living and dining space, a kitchen, 1 bathrooms, a balcony.

Bedrooms flank the living room; the kitchen sits behind dining.

Block 1View full size

Type B3

2-bedroom

592 sqft

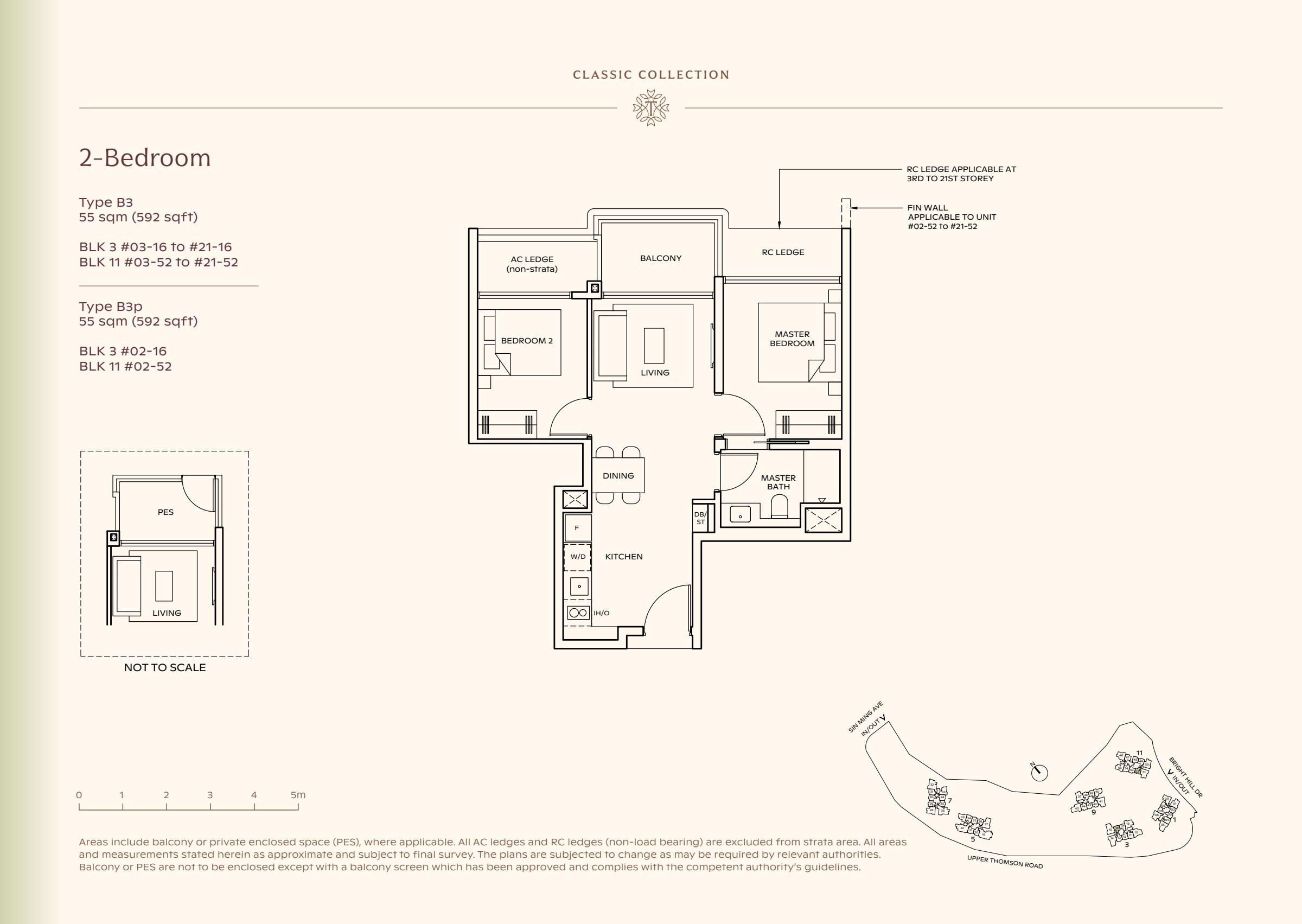

Classic Collection type B3, 592 sqft. Bedrooms flank the living room, with the master on the right and the kitchen behind dining. 2 bedrooms, living and dining space, a kitchen, 1 bathrooms, a balcony.

Bedrooms flank the living room, with the master on the right and the kitchen behind dining.

Blocks 3, 11View full size

Type BP1

2-bedroom Premium

678 sqft

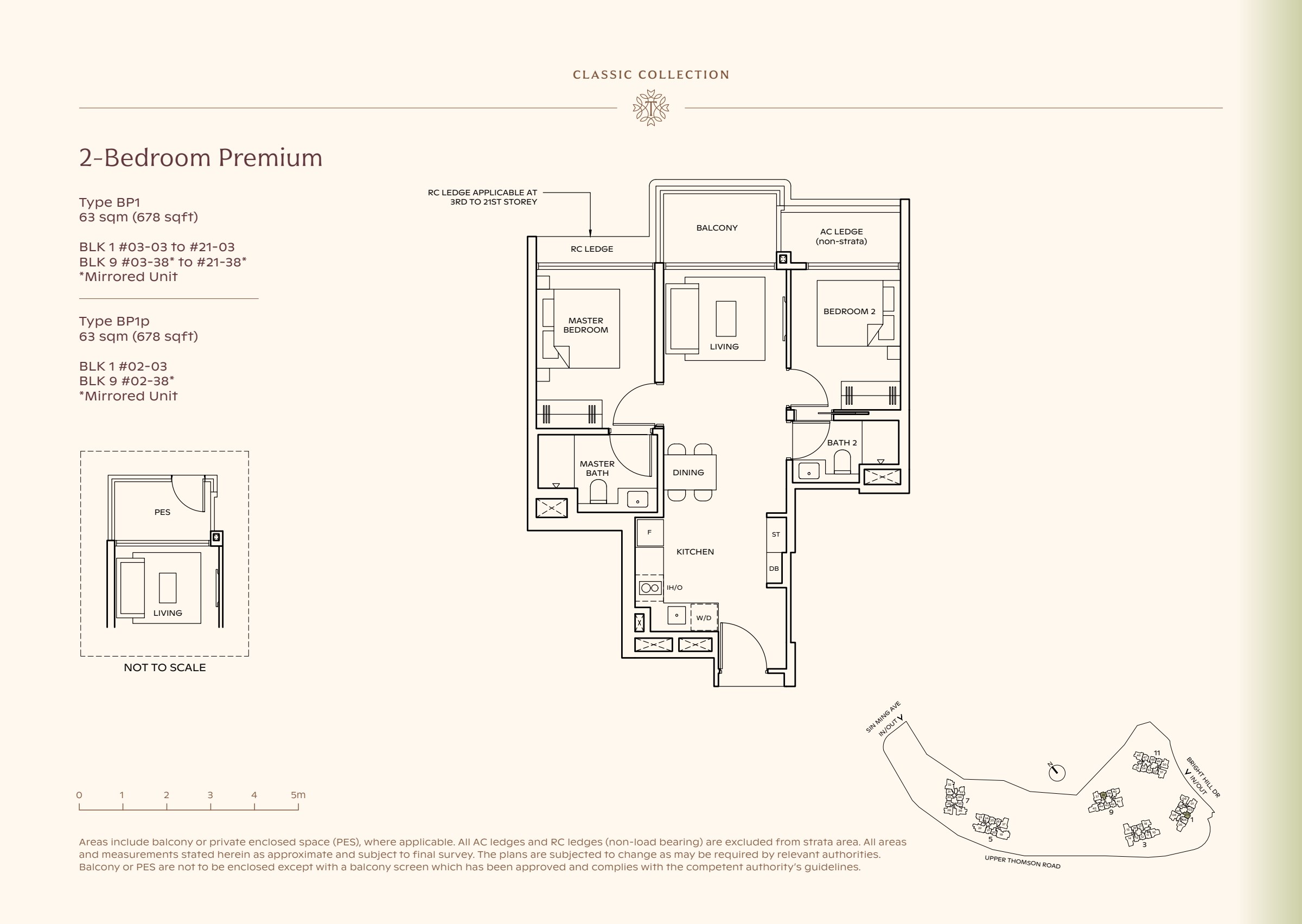

Classic Collection type BP1, 678 sqft. The master is left of the living room; the second bedroom is right of it and the kitchen is behind dining. 2 bedrooms, living and dining space, a kitchen, 2 bathrooms, a balcony.

The master is left of the living room; the second bedroom is right of it and the kitchen is behind dining.

Blocks 1, 9View full size

Type BP2

2-bedroom Premium

678 sqft

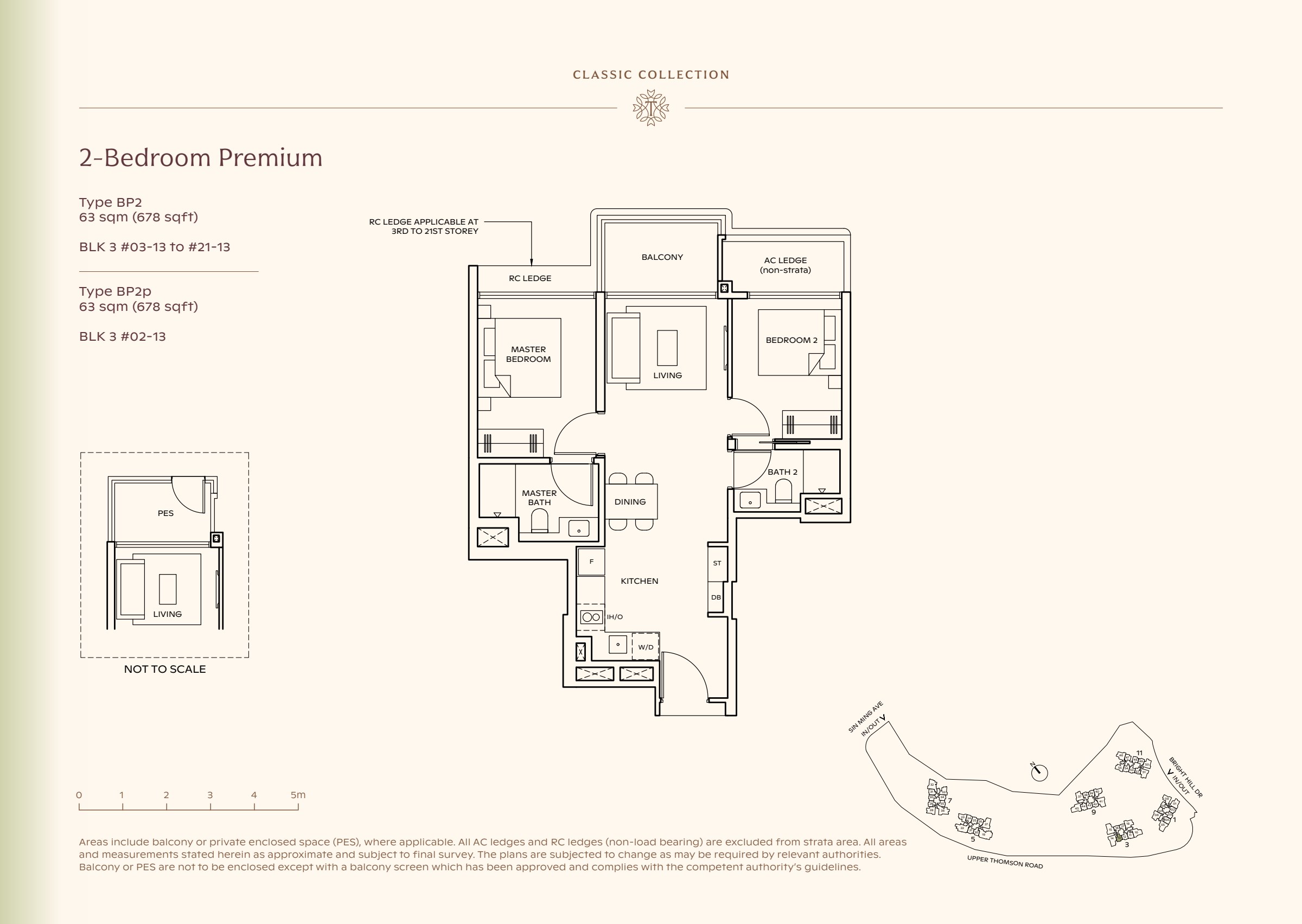

Classic Collection type BP2, 678 sqft. The master is left of the living room; the second bedroom is right of it and the kitchen is behind dining. 2 bedrooms, living and dining space, a kitchen, 2 bathrooms, a balcony.

The master is left of the living room; the second bedroom is right of it and the kitchen is behind dining.

Block 3View full size

Type BP3

2-bedroom Premium

678 sqft

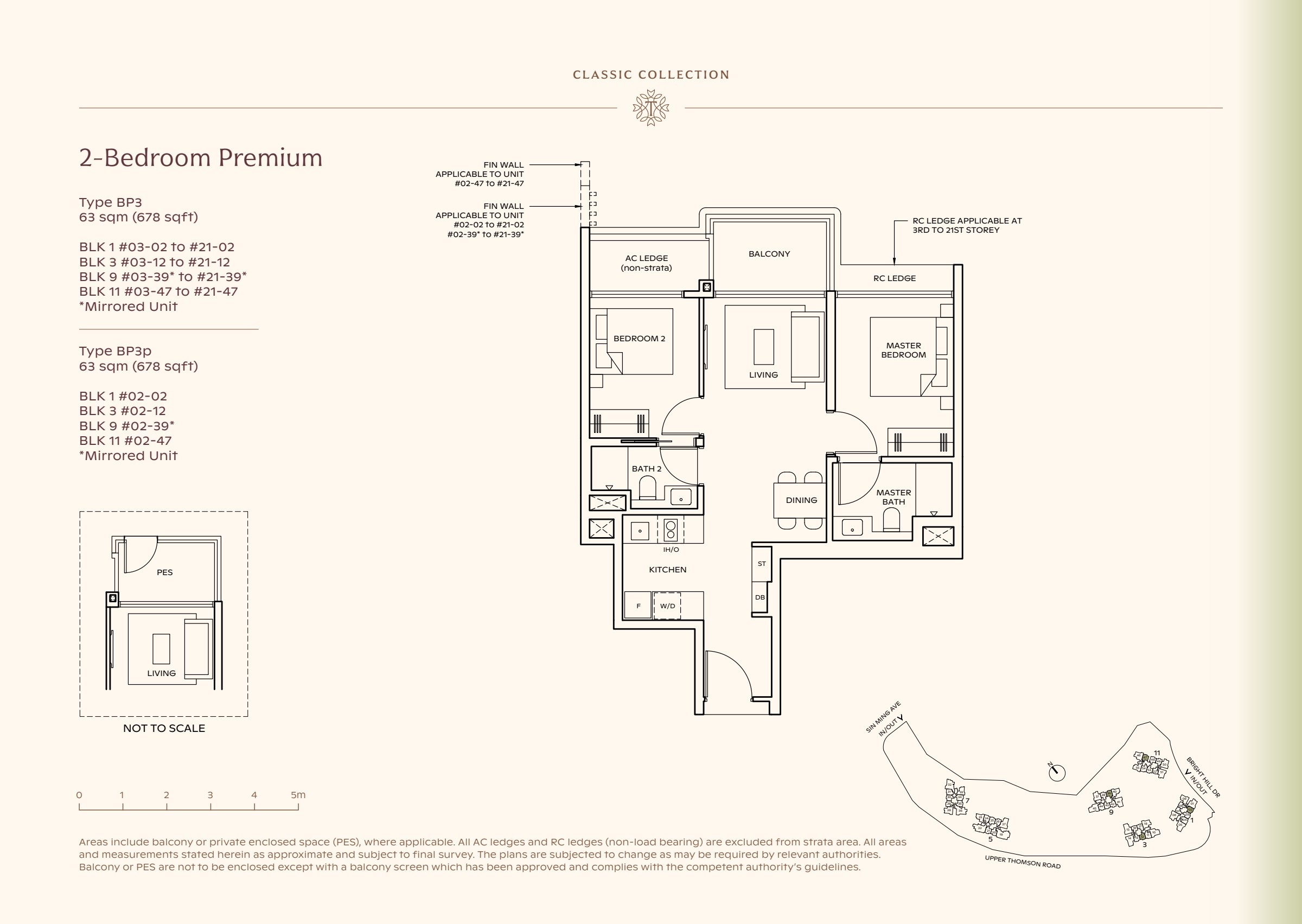

Classic Collection type BP3, 678 sqft. The master is right of the living room; the second bedroom is left of it and the kitchen is left of dining. 2 bedrooms, living and dining space, a kitchen, 2 bathrooms, a balcony.

The master is right of the living room; the second bedroom is left of it and the kitchen is left of dining.

Blocks 1, 3, 9, 11View full size

Type BP4

2-bedroom Premium

678 sqft

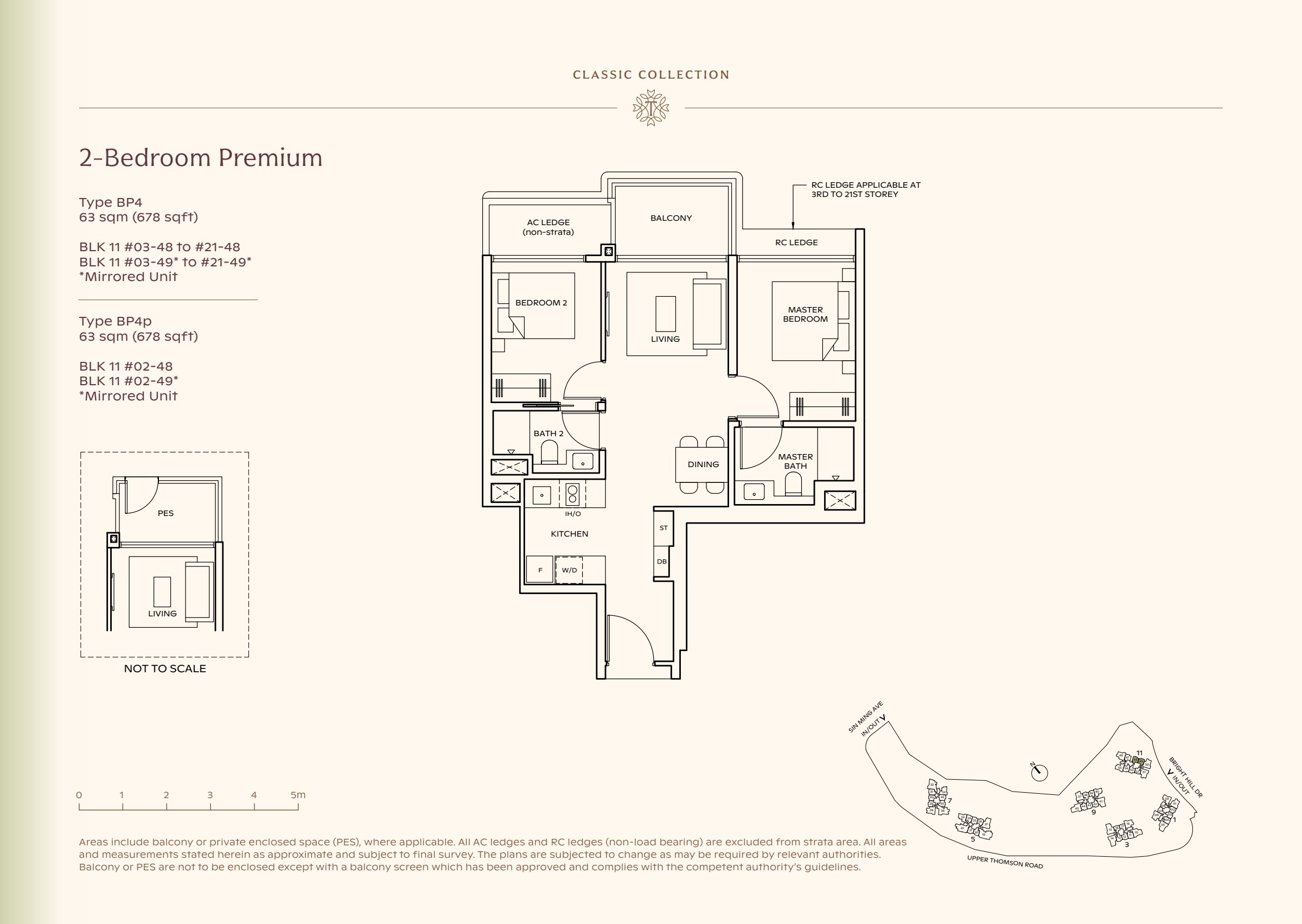

Classic Collection type BP4, 678 sqft. The master is right of the living room; the second bedroom is left of it and the kitchen is left of dining. 2 bedrooms, living and dining space, a kitchen, 2 bathrooms, a balcony.

The master is right of the living room; the second bedroom is left of it and the kitchen is left of dining.

Block 11View full size

Type BP5

2-bedroom Premium

678 sqft

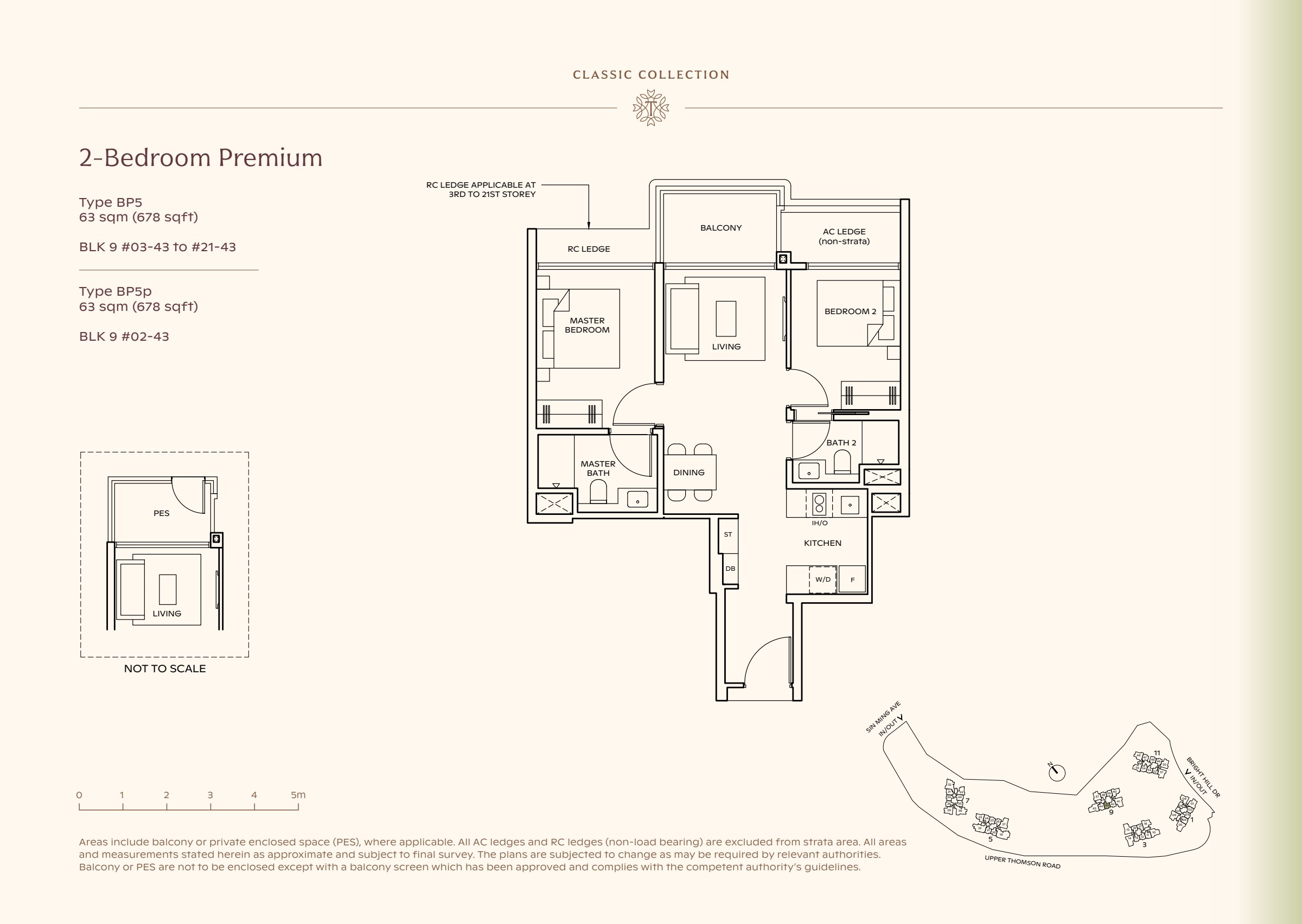

Classic Collection type BP5, 678 sqft. The master is left of the living room; the second bedroom is right of it and the kitchen is right of dining. 2 bedrooms, living and dining space, a kitchen, 2 bathrooms, a balcony.

The master is left of the living room; the second bedroom is right of it and the kitchen is right of dining.

Block 9View full size

Type BP8

2-bedroom Premium

678 sqft

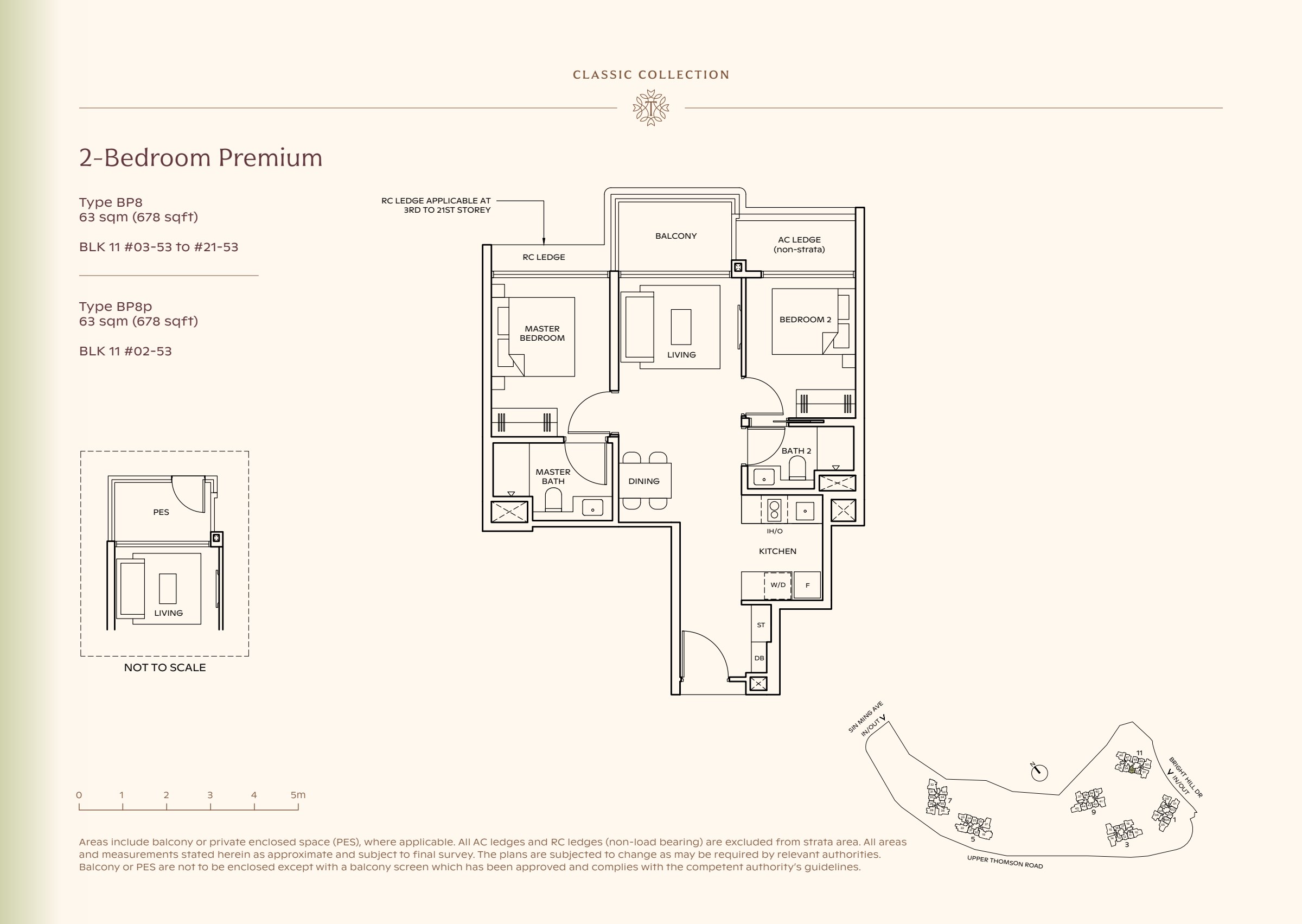

Classic Collection type BP8, 678 sqft. The master is left of the living room; the second bedroom is right of it and the kitchen is right of dining. 2 bedrooms, living and dining space, a kitchen, 2 bathrooms, a balcony.

The master is left of the living room; the second bedroom is right of it and the kitchen is right of dining.

Block 11View full size

Type BP9

2-bedroom Premium

678 sqft

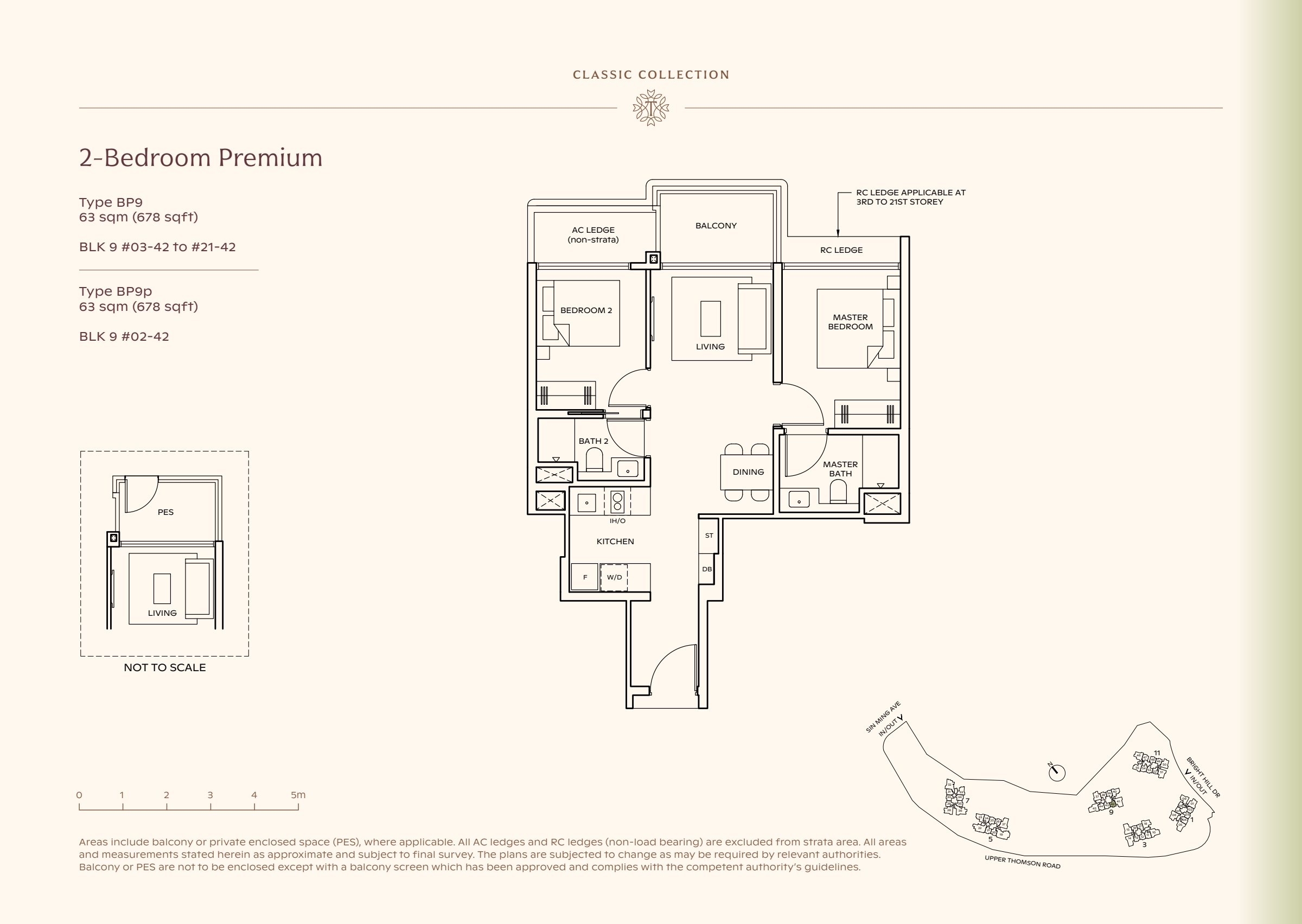

Classic Collection type BP9, 678 sqft. The master is right of the living room; the second bedroom is left of it and the kitchen is left of dining. 2 bedrooms, living and dining space, a kitchen, 2 bathrooms, a balcony.

The master is right of the living room; the second bedroom is left of it and the kitchen is left of dining.

Block 9View full size

Type BPS1

2-bedroom Premium + Study

732 sqft

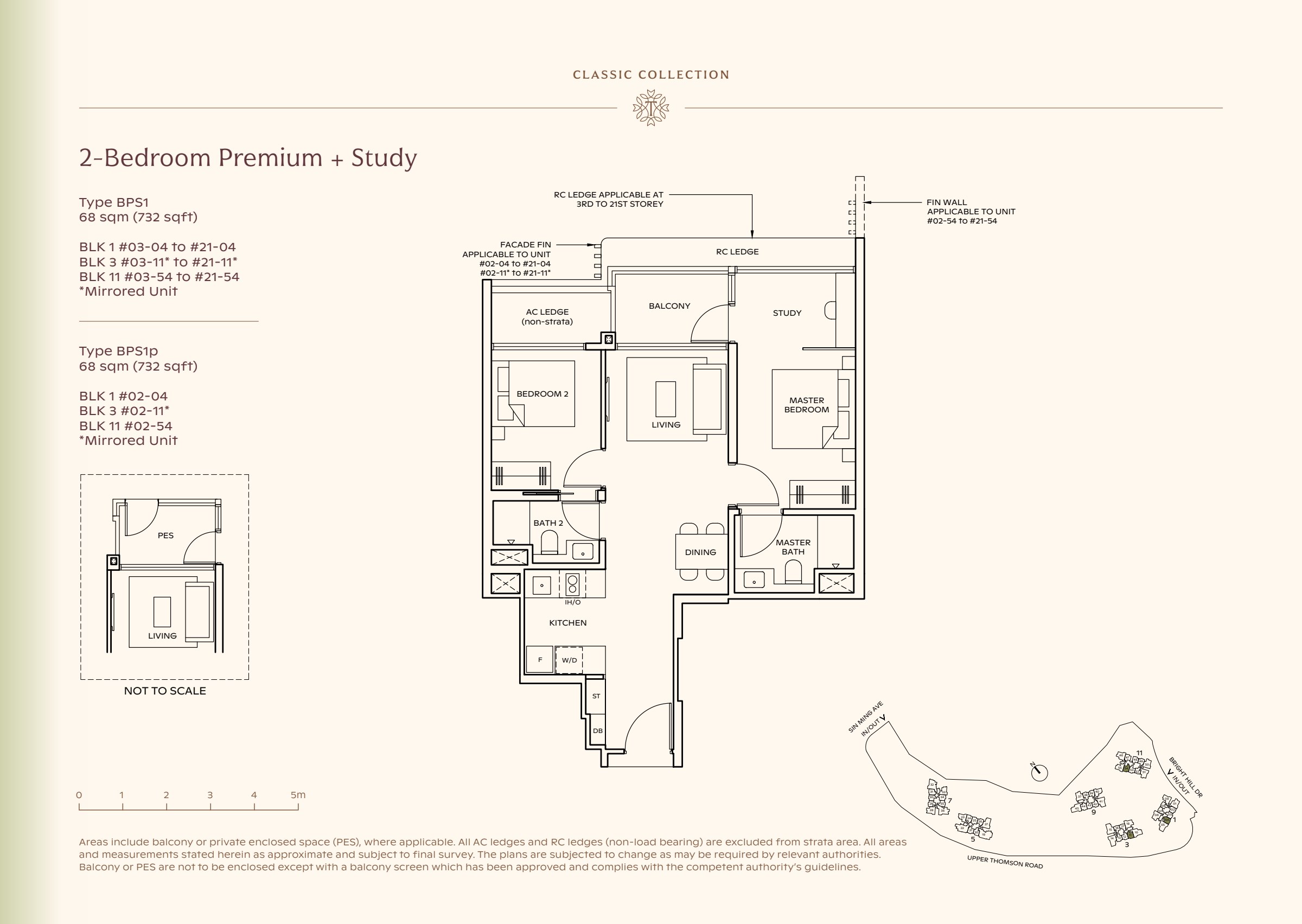

Classic Collection type BPS1, 732 sqft. The study sits beside the balcony and above the master bedroom; the kitchen is left of dining. 2 bedrooms, a study, living and dining space, a kitchen, 2 bathrooms, a balcony.

The study sits beside the balcony and above the master bedroom; the kitchen is left of dining.

Blocks 1, 3, 11View full size

Type BPS4

2-bedroom Premium + Study

775 sqft

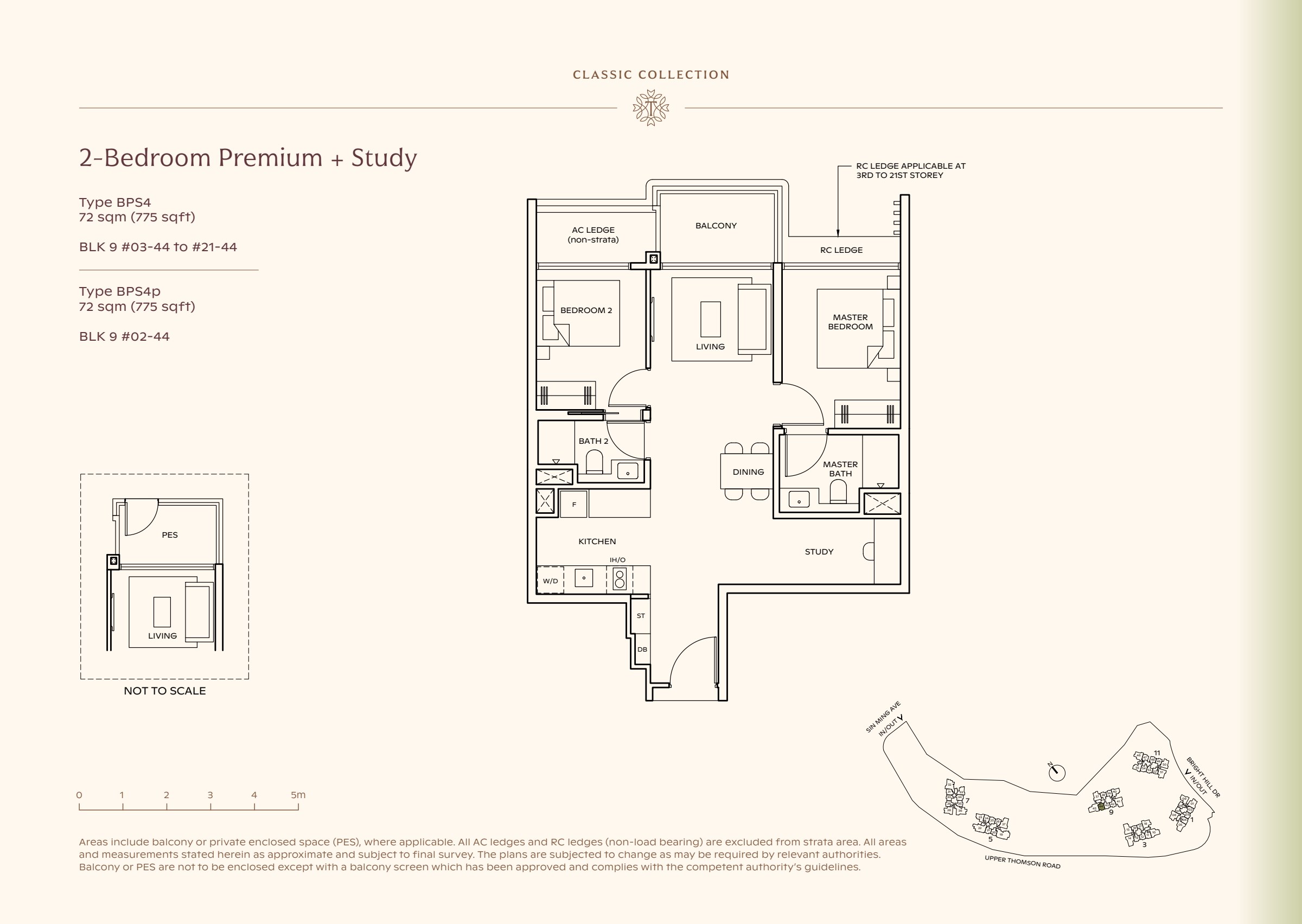

Classic Collection type BPS4, 775 sqft. The study sits beside the kitchen, away from the balcony; the master is right of the living room. 2 bedrooms, a study, living and dining space, a kitchen, 2 bathrooms, a balcony.

The study sits beside the kitchen, away from the balcony; the master is right of the living room.

Block 9View full size

Luxury Collection 7 plans

Type BP2

2-bedroom Premium

678 sqft

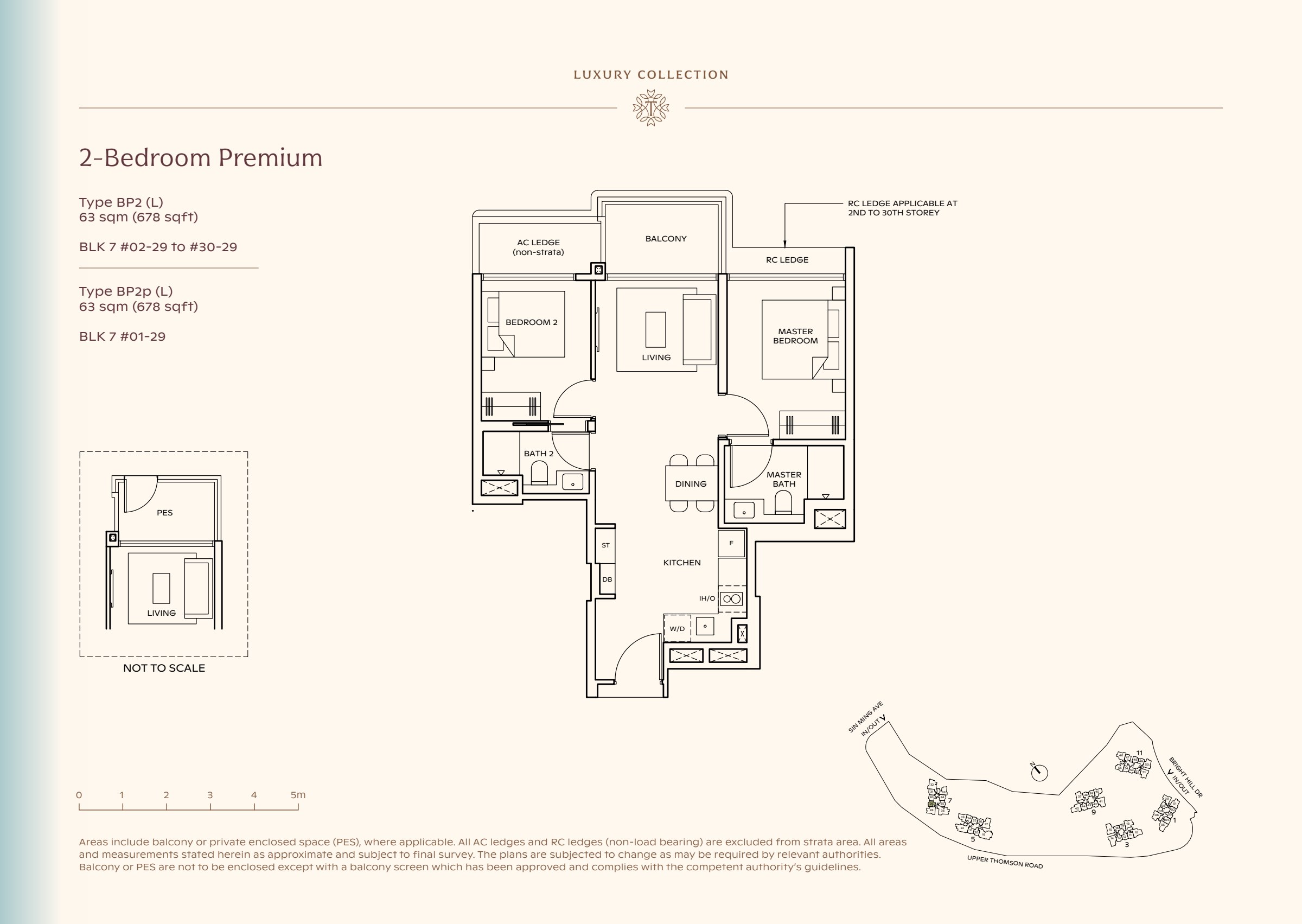

Luxury Collection type BP2, 678 sqft. The master is right of the living room; the second bedroom is left of it and the kitchen sits behind dining. 2 bedrooms, living and dining space, a kitchen, 2 bathrooms, a balcony.

The master is right of the living room; the second bedroom is left of it and the kitchen sits behind dining.

Block 7View full size

Type BP3

2-bedroom Premium

678 sqft

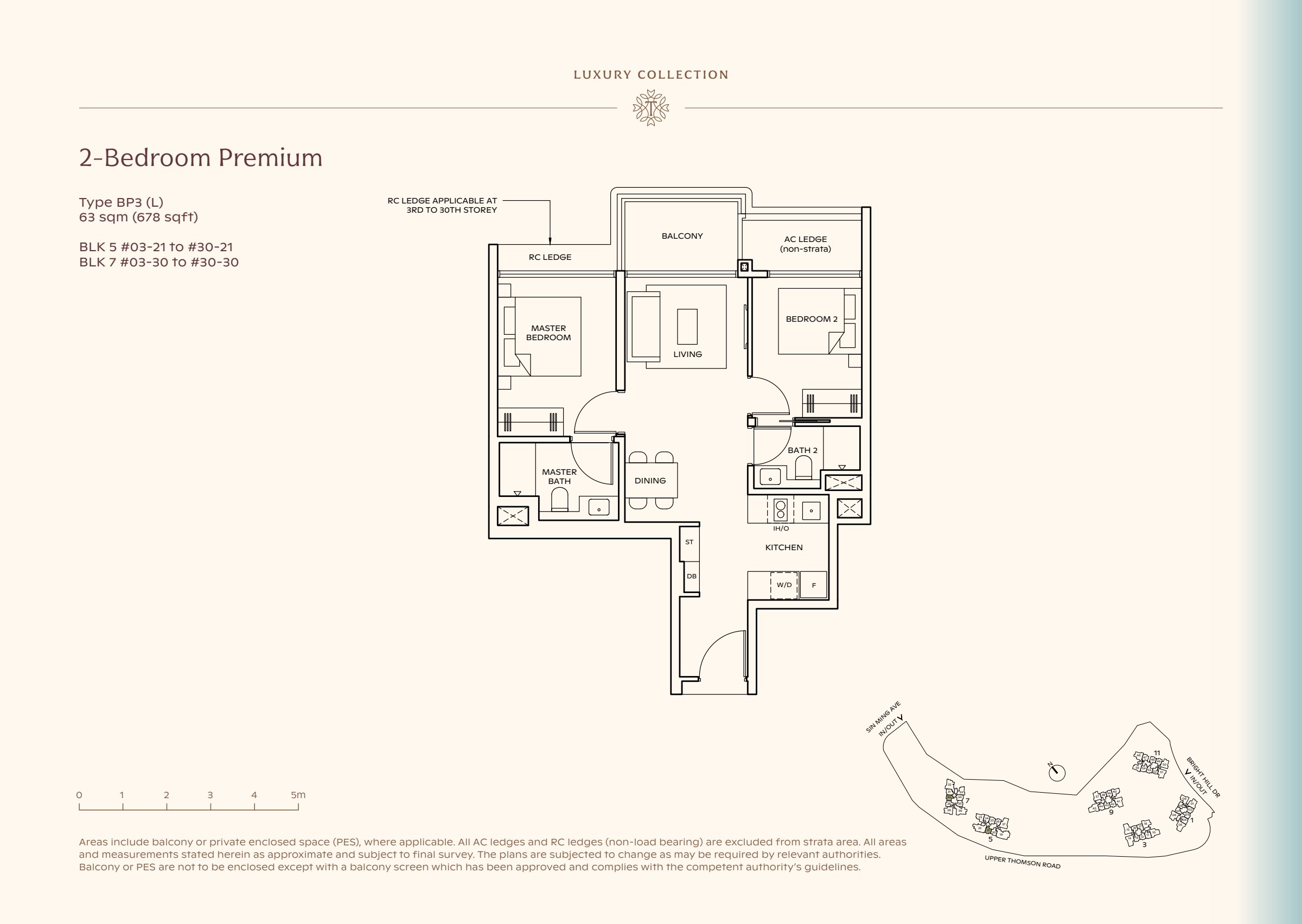

Luxury Collection type BP3, 678 sqft. The master is left of the living room; the second bedroom is right of it and the kitchen is right of dining. 2 bedrooms, living and dining space, a kitchen, 2 bathrooms, a balcony.

The master is left of the living room; the second bedroom is right of it and the kitchen is right of dining.

Blocks 5, 7View full size

Type BP6

2-bedroom Premium

678 sqft

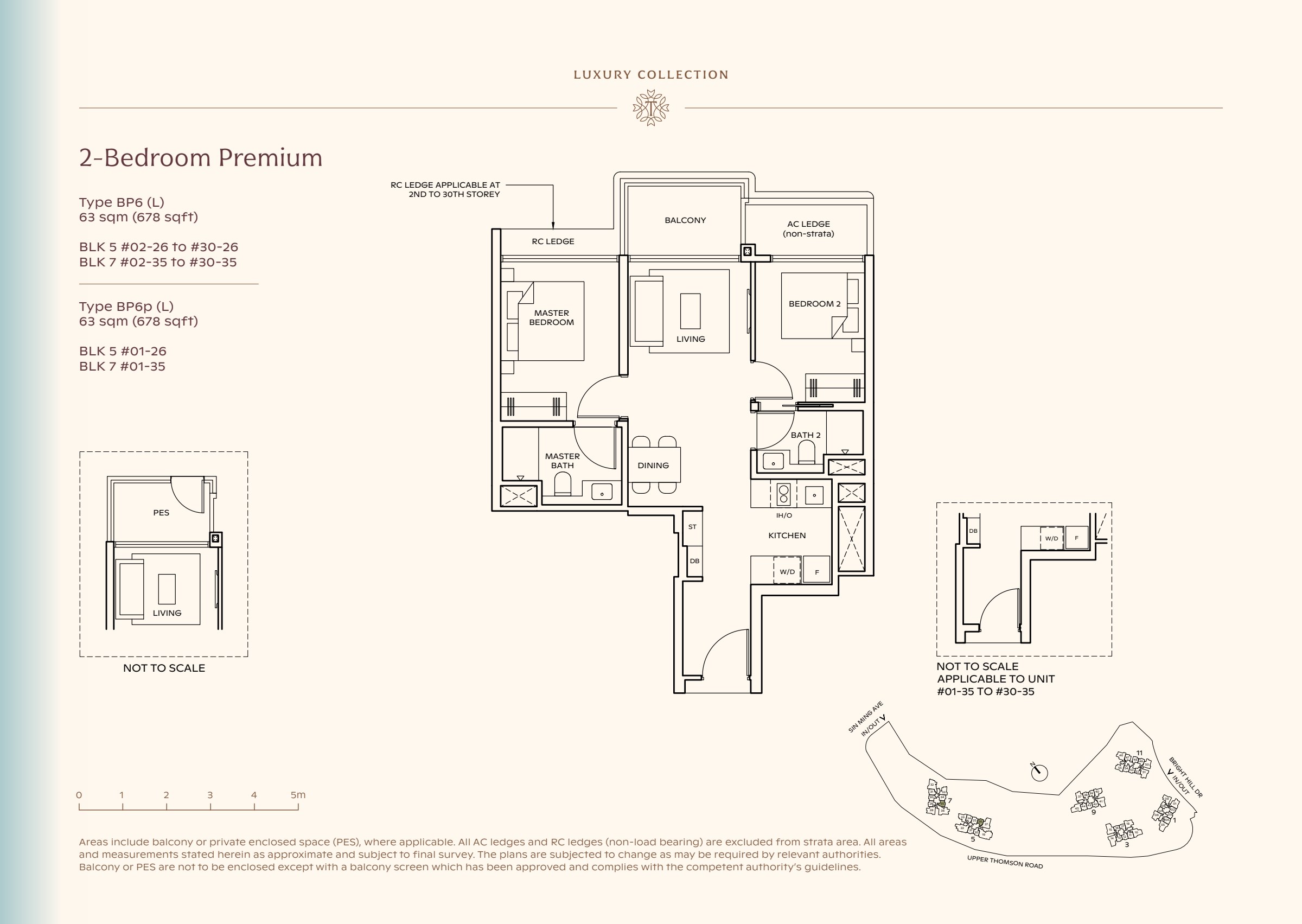

Luxury Collection type BP6, 678 sqft. The master is left of the living room; the second bedroom is right of it and the kitchen is right of dining. 2 bedrooms, living and dining space, a kitchen, 2 bathrooms, a balcony.

The master is left of the living room; the second bedroom is right of it and the kitchen is right of dining.

Blocks 5, 7View full size

Type BP7

2-bedroom Premium

678 sqft

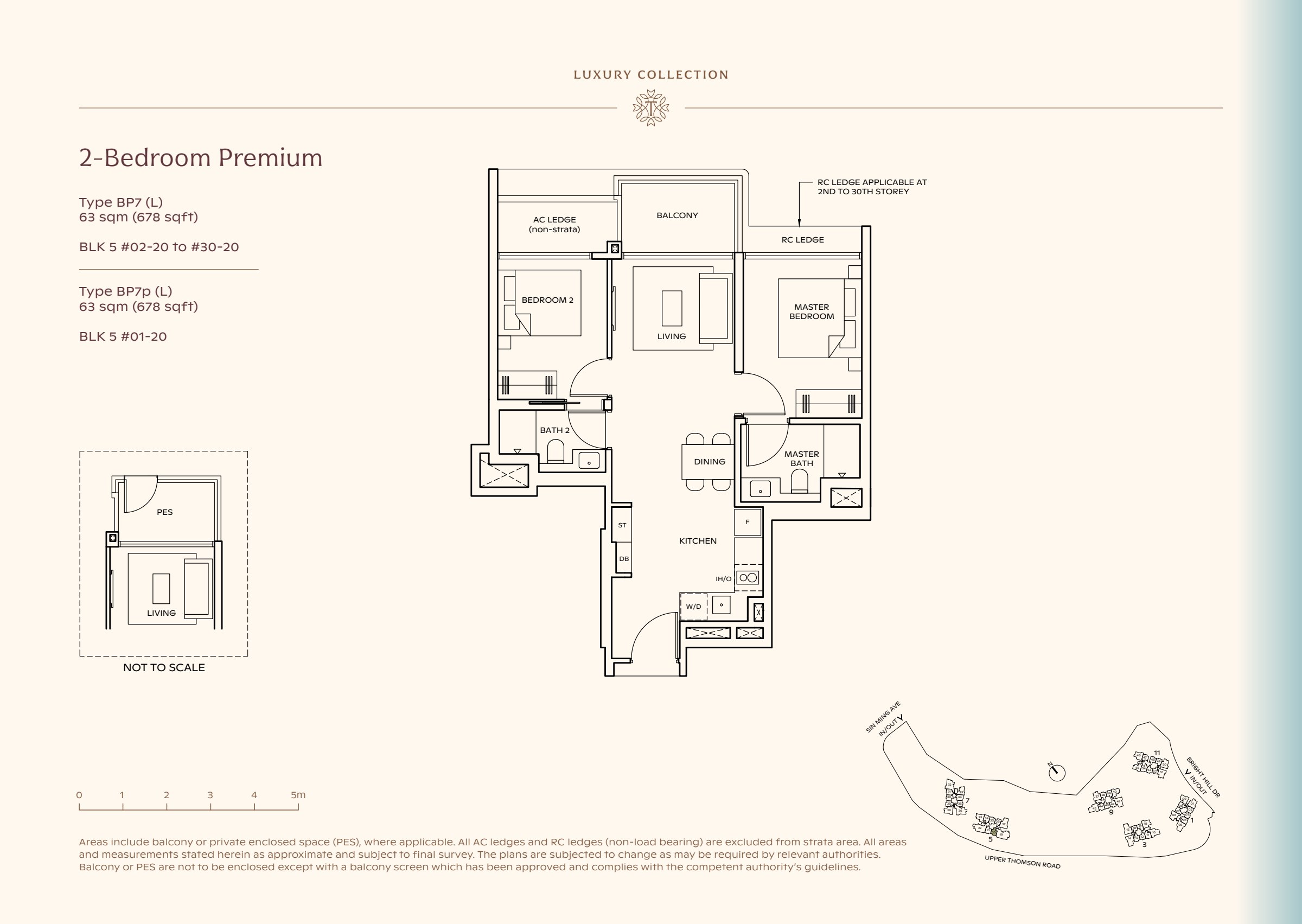

Luxury Collection type BP7, 678 sqft. The master is right of the living room; the second bedroom is left of it and the kitchen sits behind dining. 2 bedrooms, living and dining space, a kitchen, 2 bathrooms, a balcony.

The master is right of the living room; the second bedroom is left of it and the kitchen sits behind dining.

Block 5View full size

Type BPS2

2-bedroom Premium + Study

732 sqft

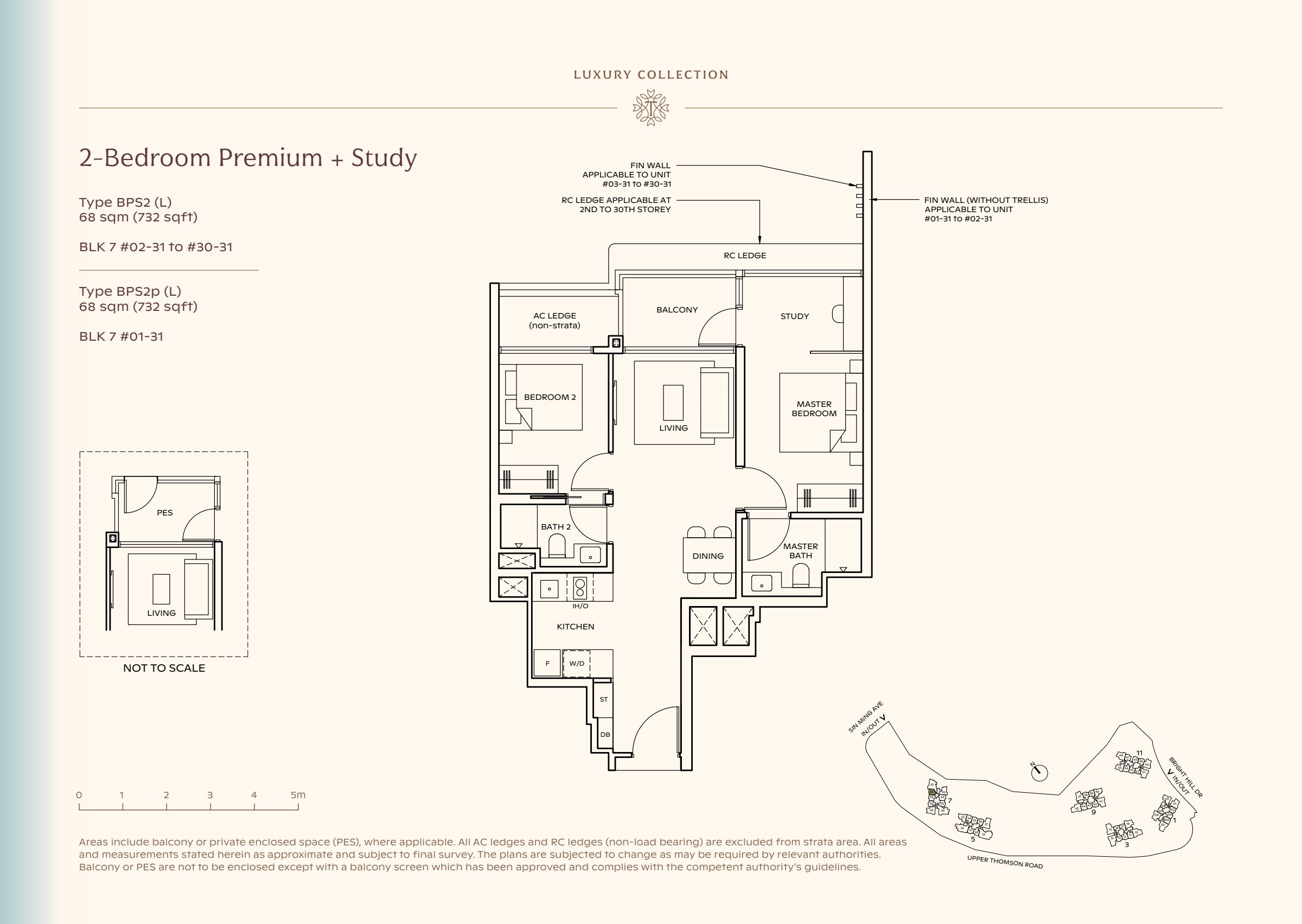

Luxury Collection type BPS2, 732 sqft. The study sits beside the balcony and above the master bedroom; the kitchen is left of dining. 2 bedrooms, a study, living and dining space, a kitchen, 2 bathrooms, a balcony.

The study sits beside the balcony and above the master bedroom; the kitchen is left of dining.

Block 7View full size

Type BPS3

2-bedroom Premium + Study

732 sqft

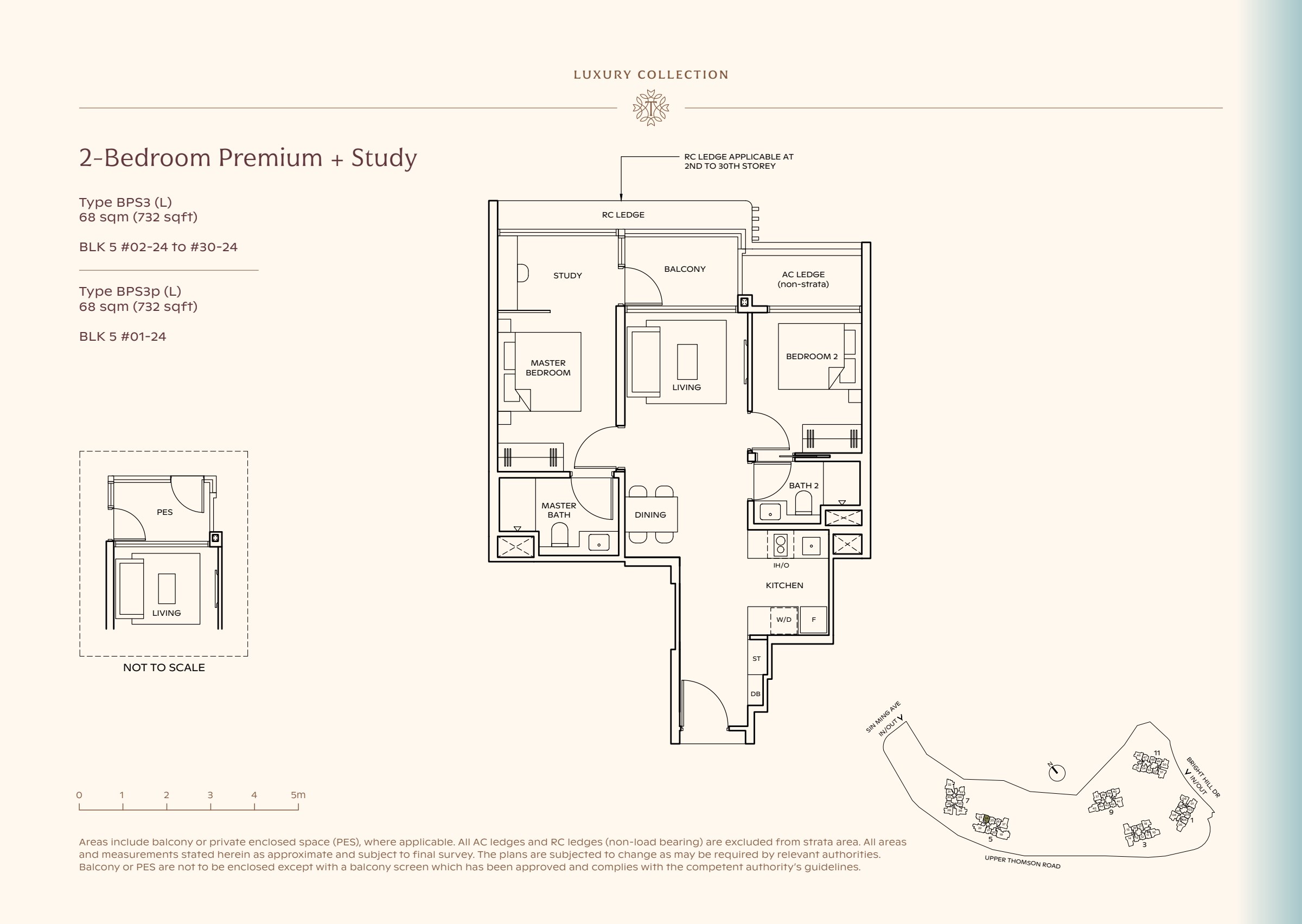

Luxury Collection type BPS3, 732 sqft. The study sits beside the balcony and above the master bedroom; the kitchen is right of dining. 2 bedrooms, a study, living and dining space, a kitchen, 2 bathrooms, a balcony.

The study sits beside the balcony and above the master bedroom; the kitchen is right of dining.

Block 5View full size

Type BPS4

2-bedroom Premium + Study

775 sqft

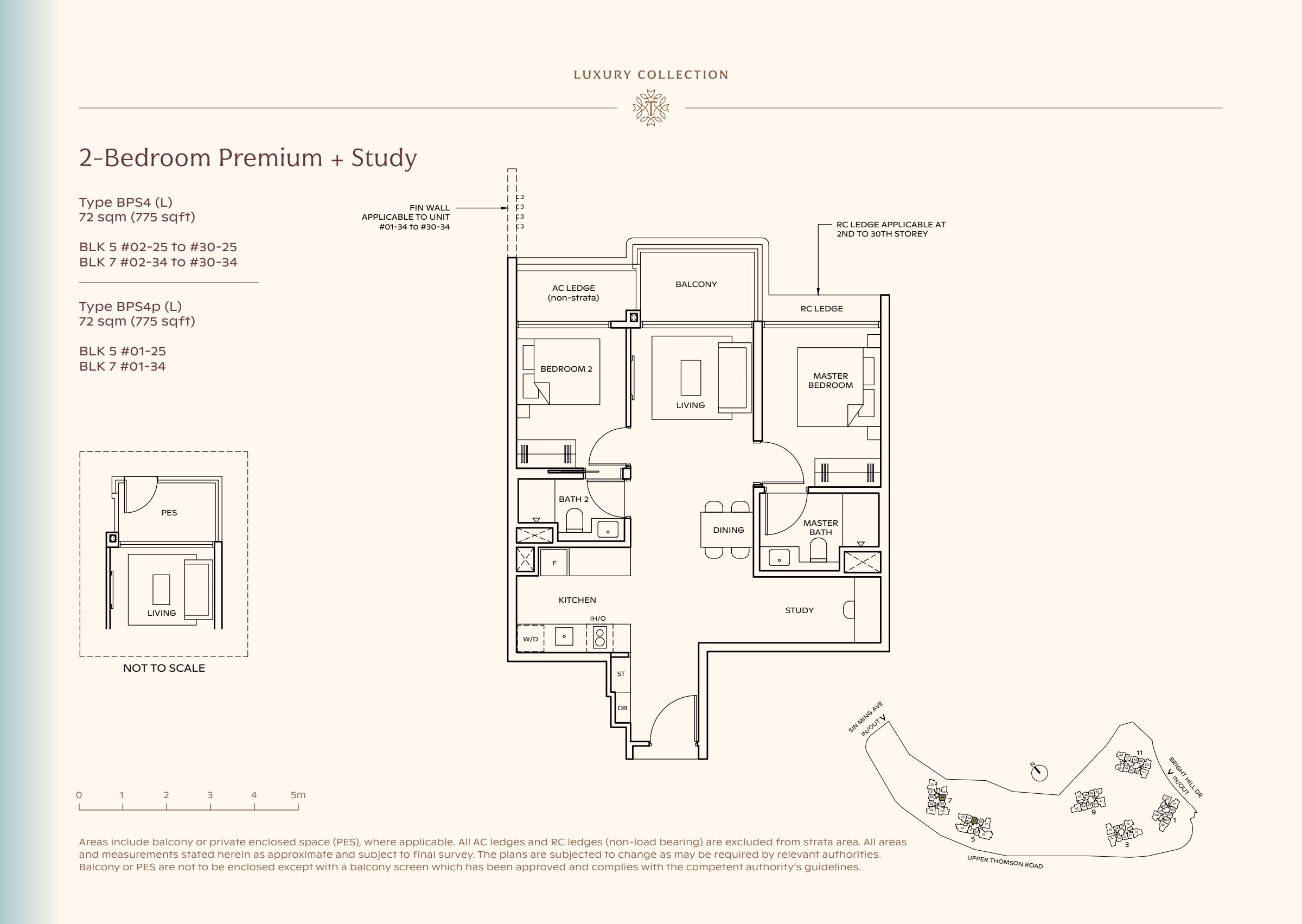

Luxury Collection type BPS4, 775 sqft. The study sits beside the kitchen, away from the balcony; the master is right of the living room. 2 bedrooms, a study, living and dining space, a kitchen, 2 bathrooms, a balcony.

The study sits beside the kitchen, away from the balcony; the master is right of the living room.

Blocks 5, 7View full size
3 bedrooms14 layouts

Classic Collection 11 plans

Type C1

3-bedroom

947 sqft

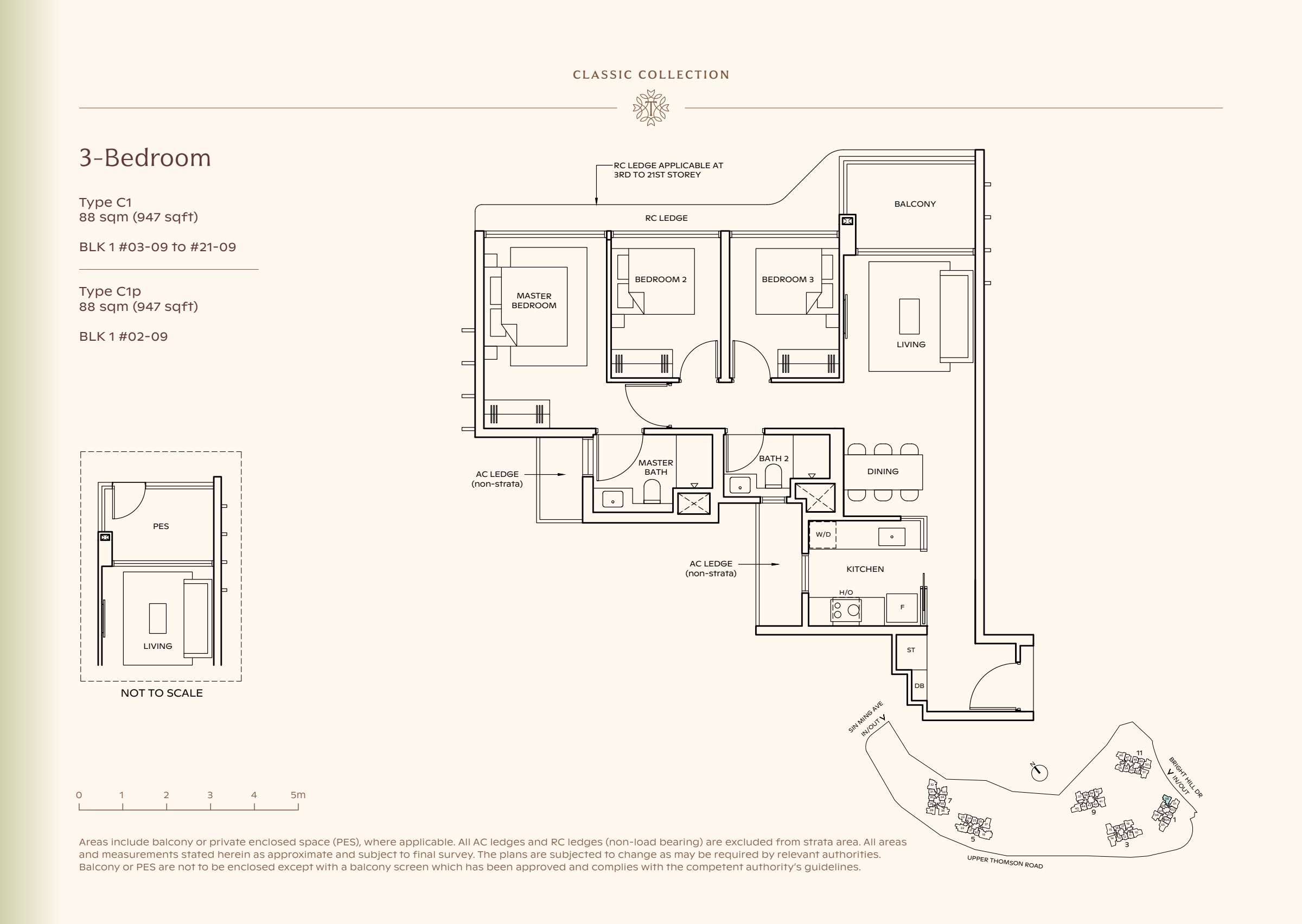

Classic Collection type C1, 947 sqft. Three bedrooms line one side of the plan, with the master at the left and living space at the right. 3 bedrooms, living and dining space, a kitchen, 2 bathrooms, a balcony.

Three bedrooms line one side of the plan, with the master at the left and living space at the right.

Block 1View full size

Type C2

3-bedroom

947 sqft

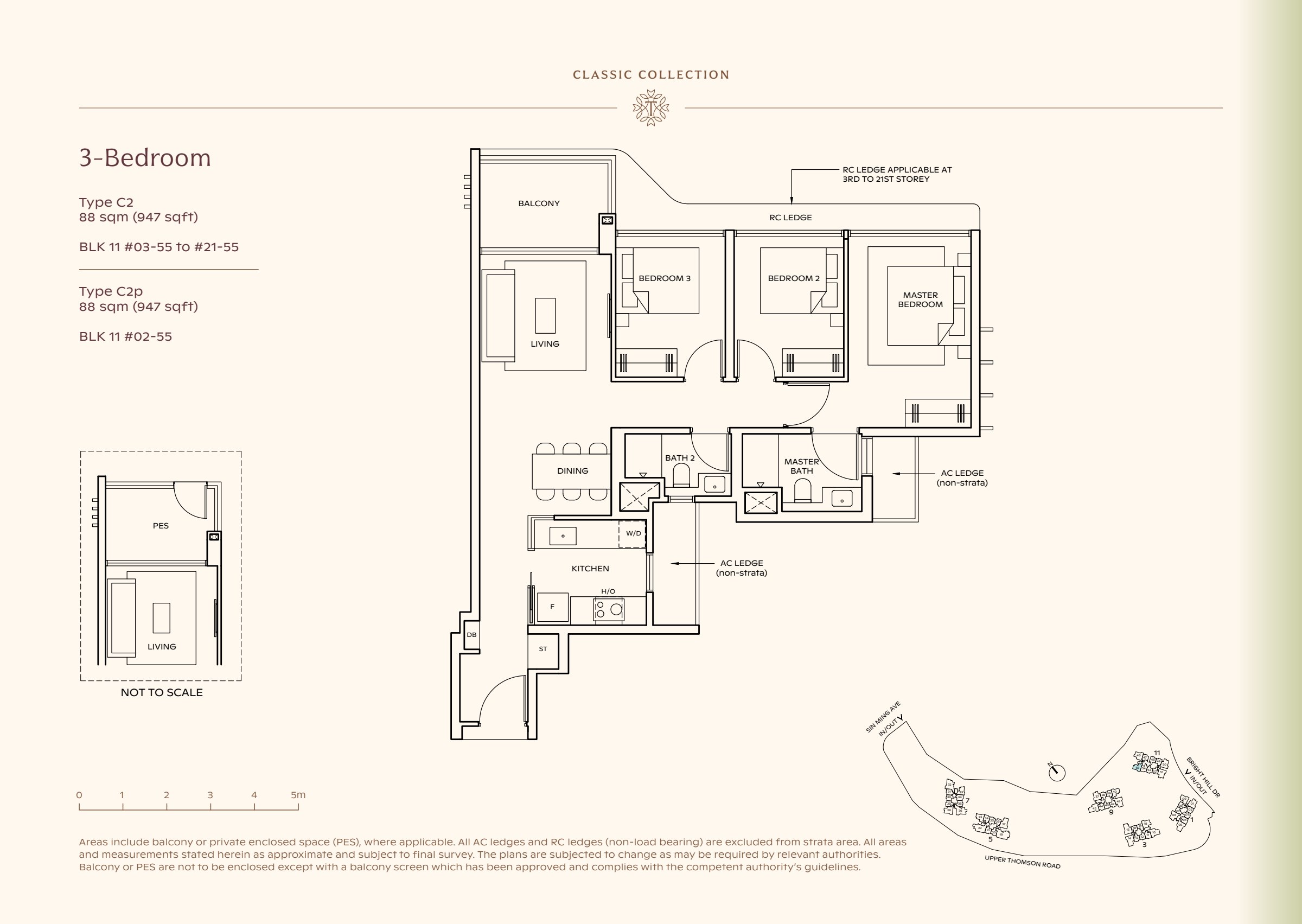

Classic Collection type C2, 947 sqft. Three bedrooms line one side of the plan, with living space at the left and the master at the right. 3 bedrooms, living and dining space, a kitchen, 2 bathrooms, a balcony.

Three bedrooms line one side of the plan, with living space at the left and the master at the right.

Block 11View full size

Type C4

3-bedroom

947 sqft

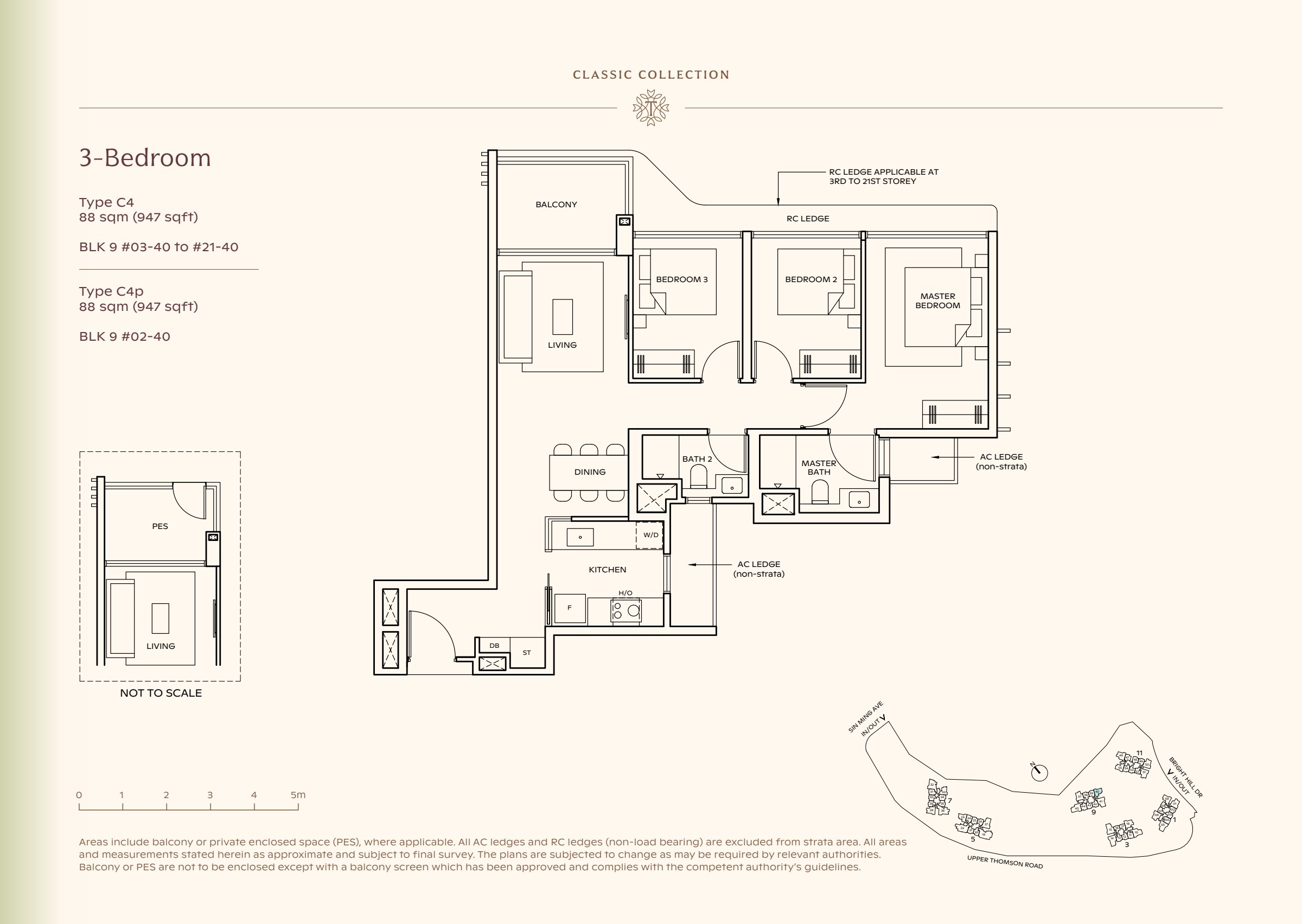

Classic Collection type C4, 947 sqft. Three bedrooms line one side of the plan, with living space at the left and the master at the right. 3 bedrooms, living and dining space, a kitchen, 2 bathrooms, a balcony.

Three bedrooms line one side of the plan, with living space at the left and the master at the right.

Block 9View full size

Type CP1

3-bedroom Premium

1,055 sqft

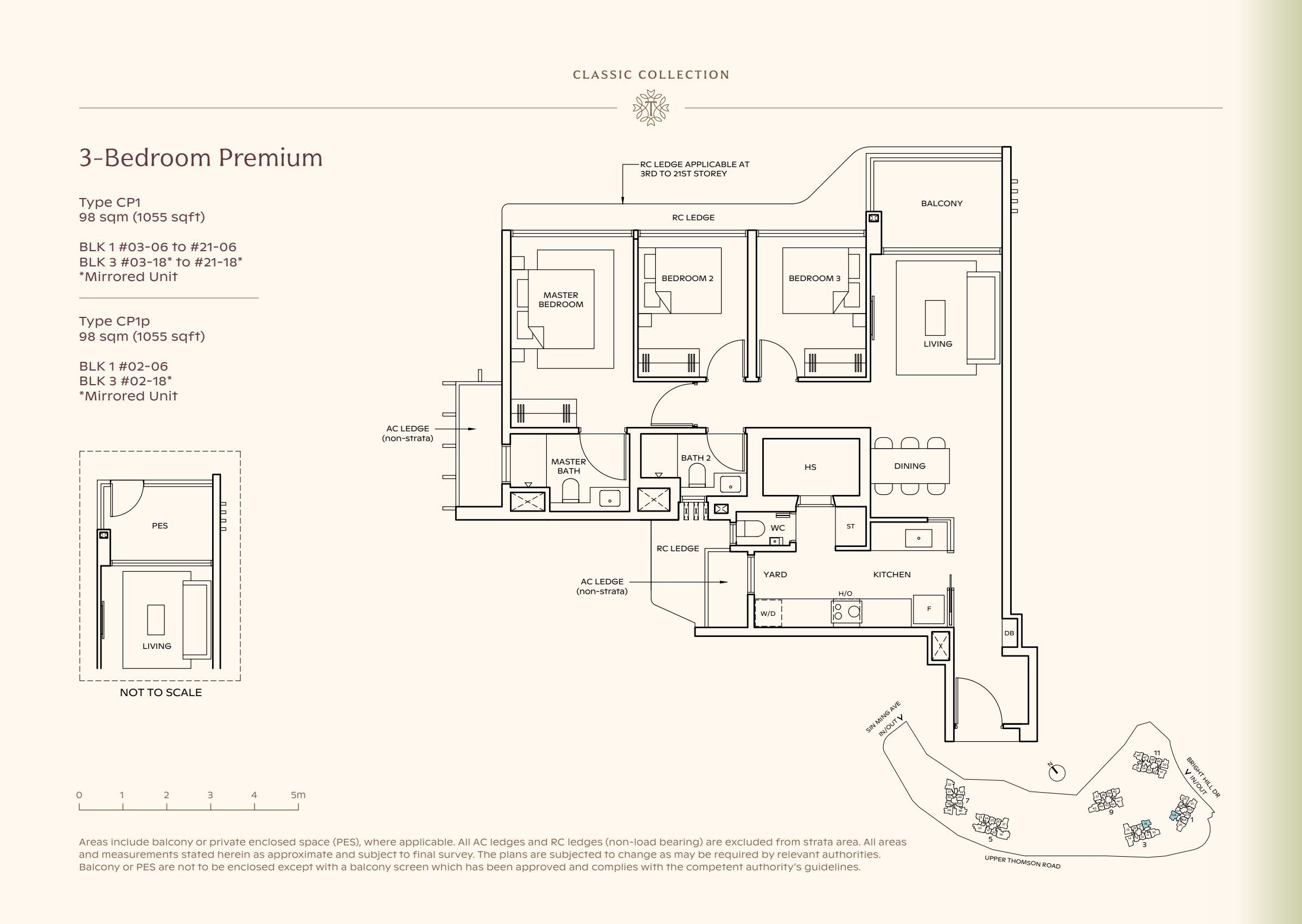

Classic Collection type CP1, 1055 sqft. Three bedrooms line the left side of the plan; living space is at the right, with a yard beside the kitchen. 3 bedrooms, living and dining space, a kitchen, a yard, 2 bathrooms, a balcony.

Three bedrooms line the left side of the plan; living space is at the right, with a yard beside the kitchen.

Blocks 1, 3View full size

Type CP2

3-bedroom Premium

1,055 sqft

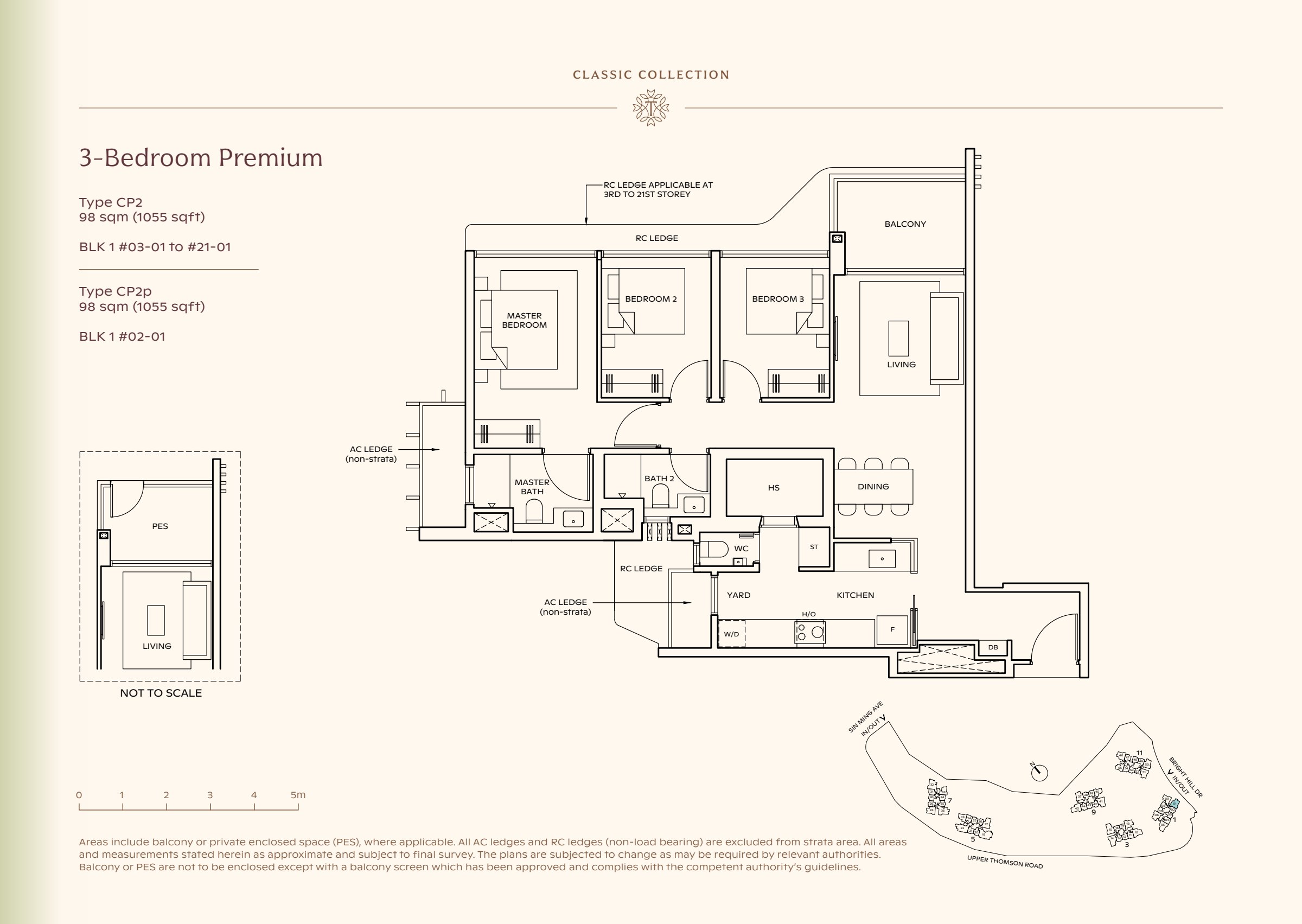

Classic Collection type CP2, 1055 sqft. Three bedrooms line the left side of the plan; living space is at the right, with a yard beside the kitchen. 3 bedrooms, living and dining space, a kitchen, a yard, 2 bathrooms, a balcony.

Three bedrooms line the left side of the plan; living space is at the right, with a yard beside the kitchen.

Block 1View full size

Type CP3

3-bedroom Premium

1,055 sqft

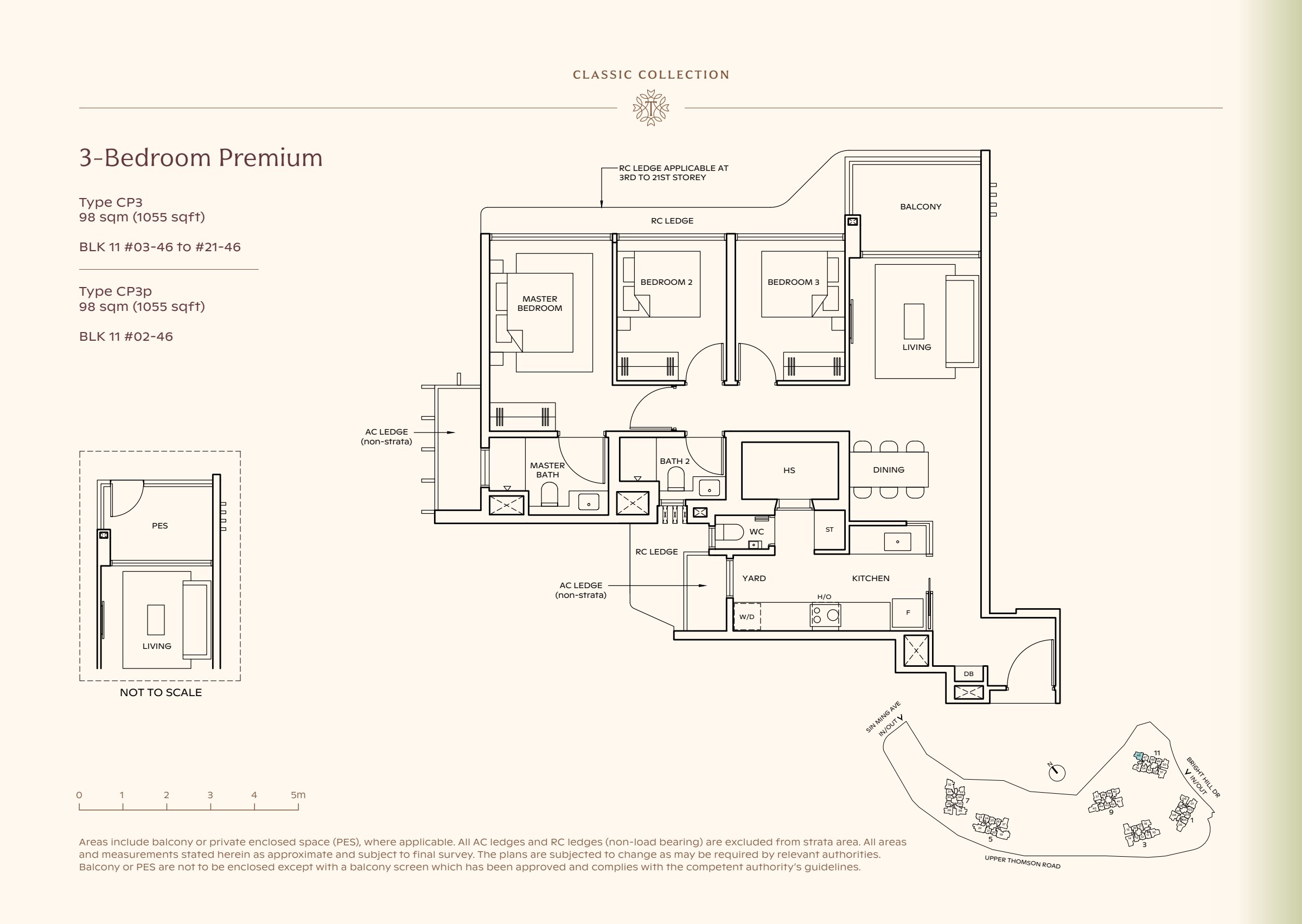

Classic Collection type CP3, 1055 sqft. Three bedrooms line the left side of the plan; living space is at the right, with a yard beside the kitchen. 3 bedrooms, living and dining space, a kitchen, a yard, 2 bathrooms, a balcony.

Three bedrooms line the left side of the plan; living space is at the right, with a yard beside the kitchen.

Block 11View full size

Type CP4

3-bedroom Premium

1,055 sqft

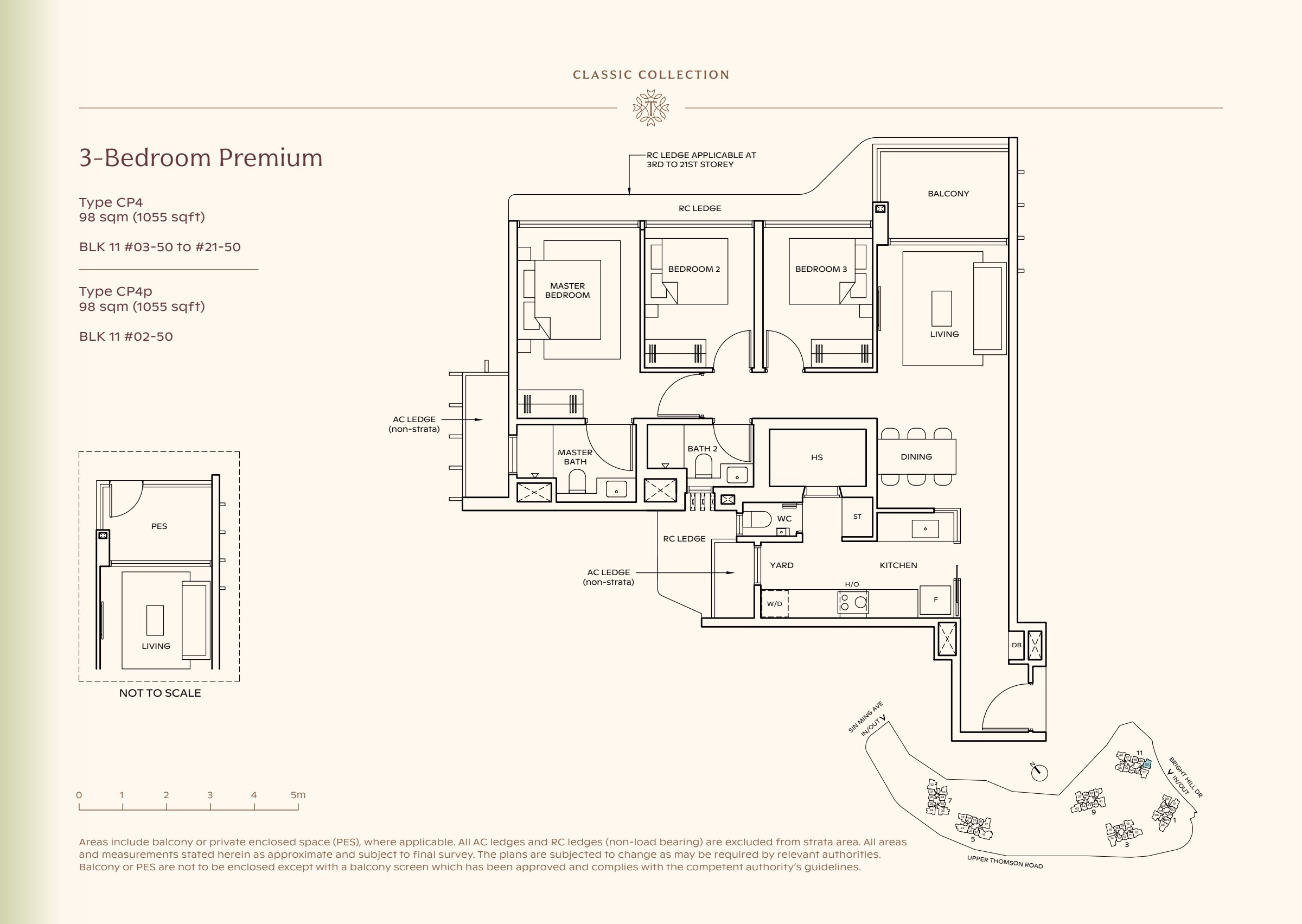

Classic Collection type CP4, 1055 sqft. Three bedrooms line the left side of the plan; living space is at the right, with a yard beside the kitchen. 3 bedrooms, living and dining space, a kitchen, a yard, 2 bathrooms, a balcony.

Three bedrooms line the left side of the plan; living space is at the right, with a yard beside the kitchen.

Block 11View full size

Type CP5

3-bedroom Premium

1,055 sqft

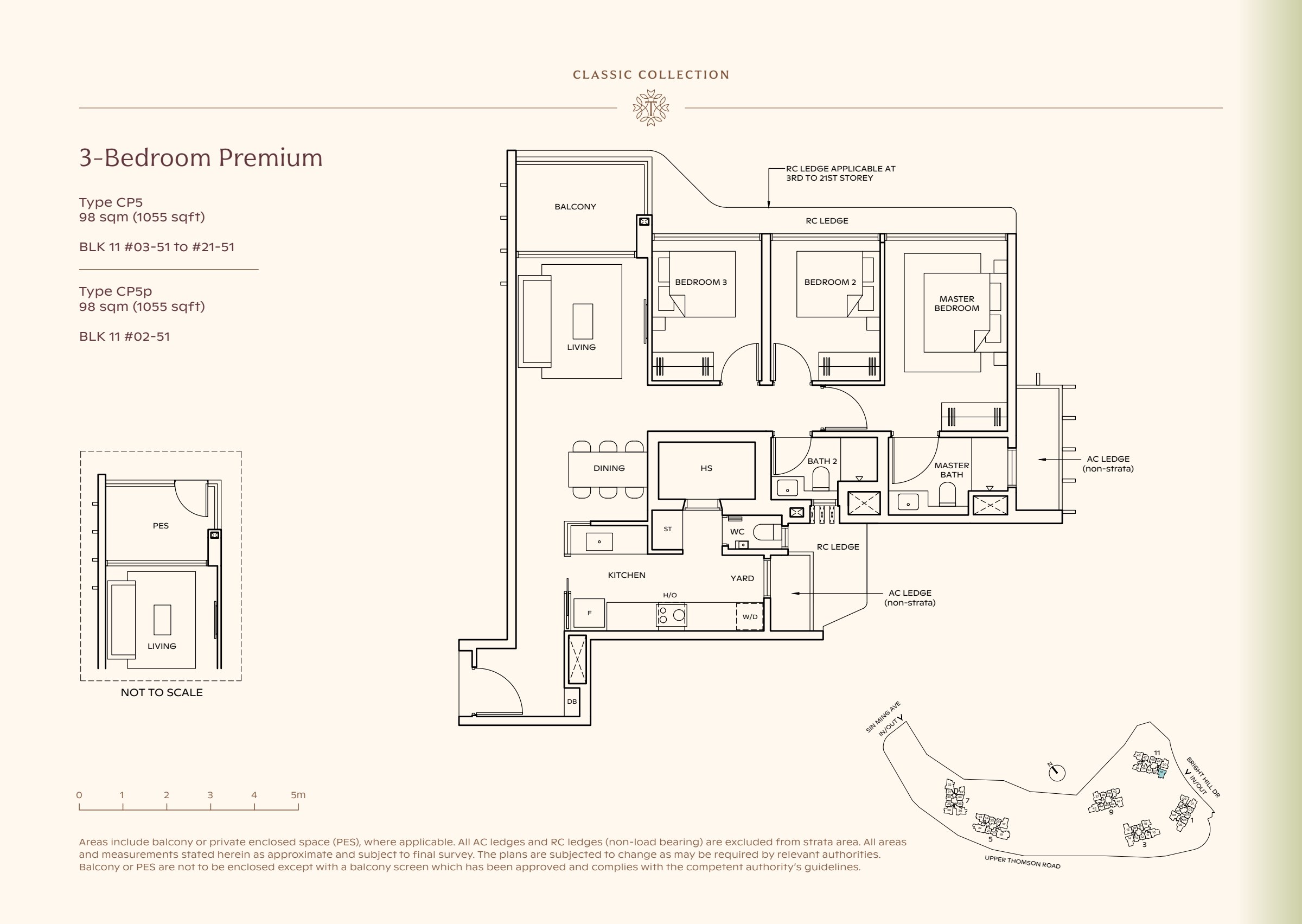

Classic Collection type CP5, 1055 sqft. Three bedrooms line the right side of the plan; living space is at the left, with a yard beside the kitchen. 3 bedrooms, living and dining space, a kitchen, a yard, 2 bathrooms, a balcony.

Three bedrooms line the right side of the plan; living space is at the left, with a yard beside the kitchen.

Block 11View full size

Type CP6

3-bedroom Premium

1,055 sqft

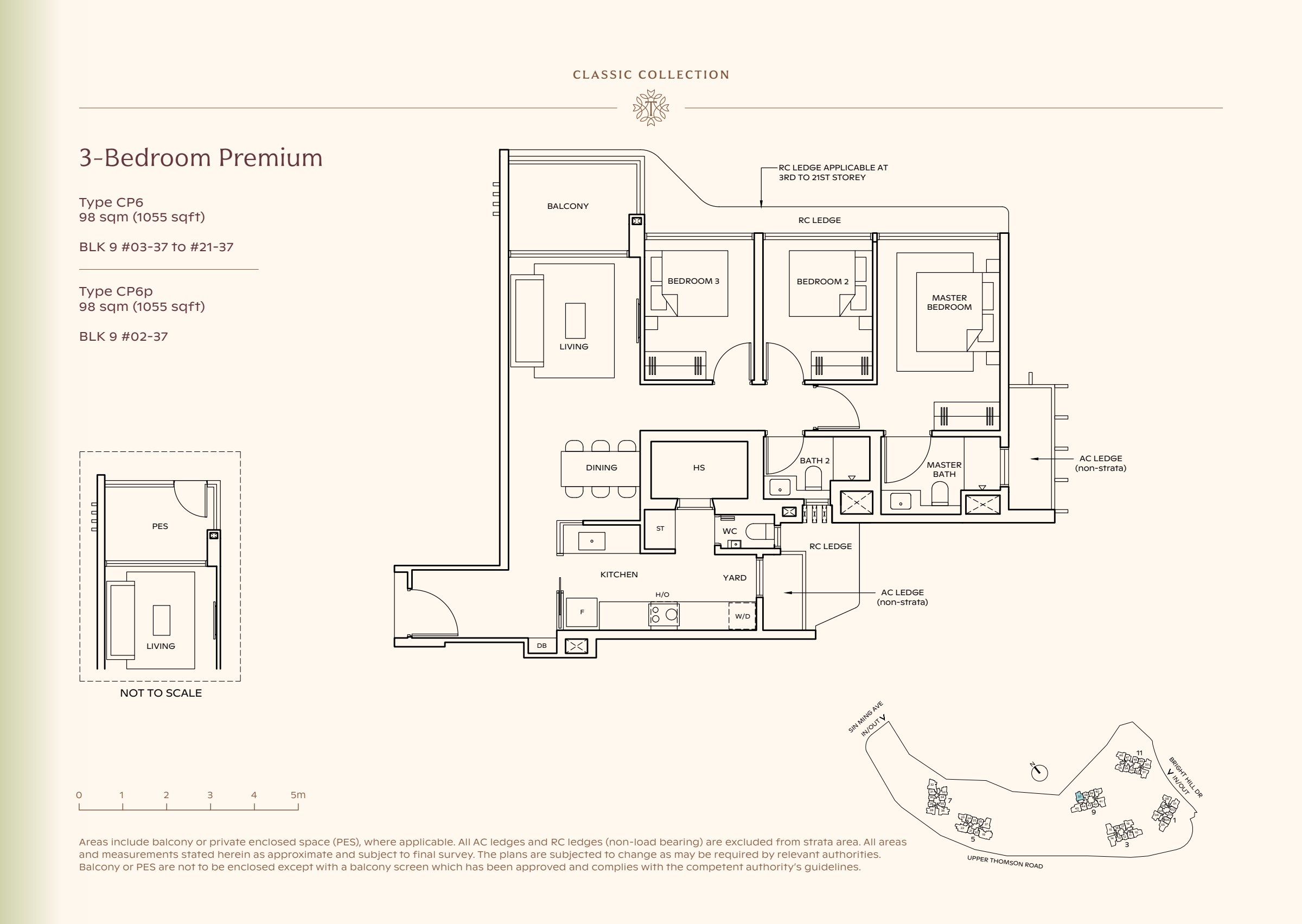

Classic Collection type CP6, 1055 sqft. Three bedrooms line the right side of the plan; living space is at the left, with a yard beside the kitchen. 3 bedrooms, living and dining space, a kitchen, a yard, 2 bathrooms, a balcony.

Three bedrooms line the right side of the plan; living space is at the left, with a yard beside the kitchen.

Block 9View full size

Type CPS1

3-bedroom Premium + Study

1,152 sqft

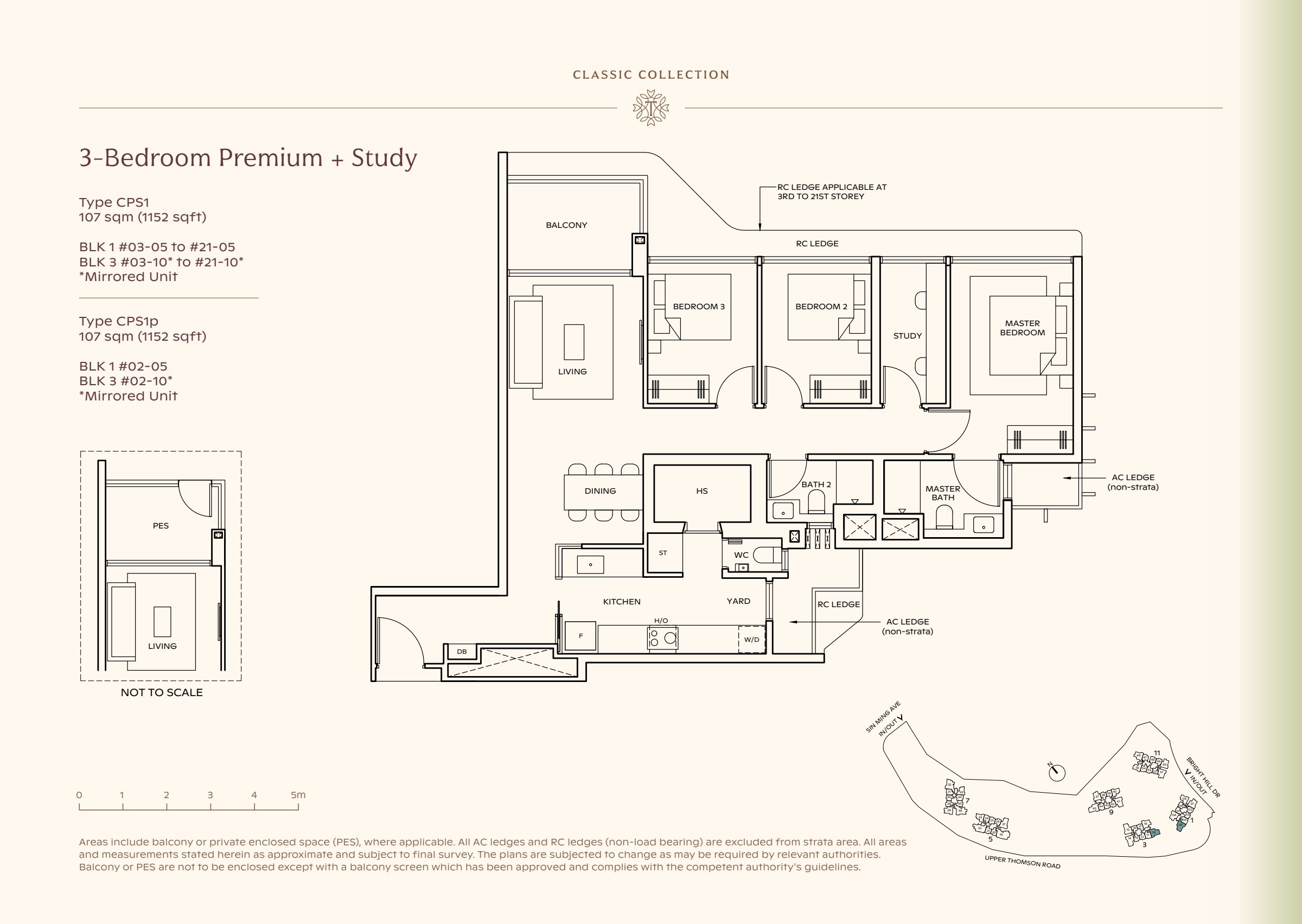

Classic Collection type CPS1, 1152 sqft. The study sits between the master and other bedrooms; living space is at the left and the yard adjoins the kitchen. 3 bedrooms, a study, living and dining space, a kitchen, a yard, 2 bathrooms, a balcony.

The study sits between the master and other bedrooms; living space is at the left and the yard adjoins the kitchen.

Blocks 1, 3View full size

Type CPS2

3-bedroom Premium + Study

1,152 sqft

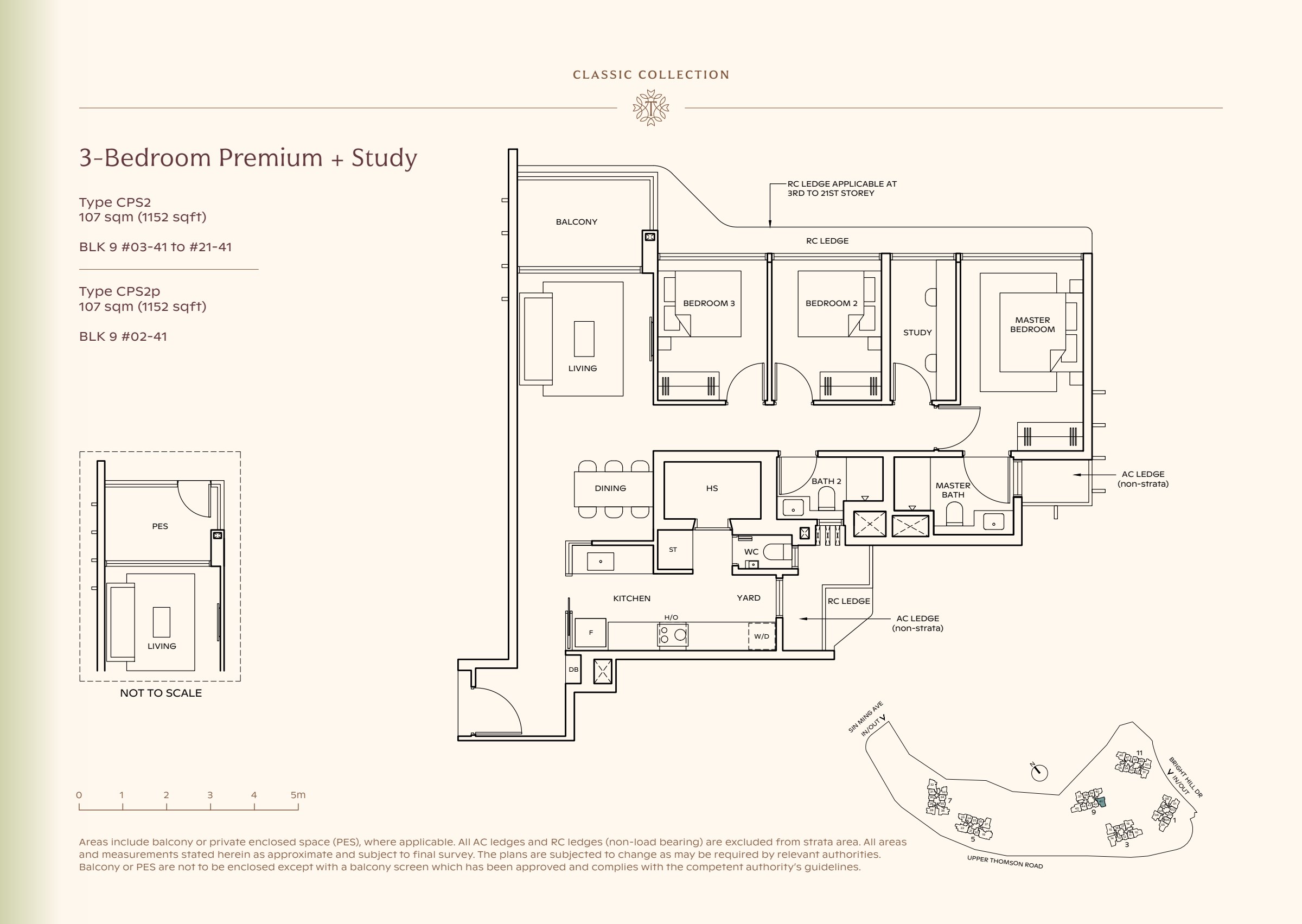

Classic Collection type CPS2, 1152 sqft. The study sits between the master and other bedrooms; living space is at the left and the yard adjoins the kitchen. 3 bedrooms, a study, living and dining space, a kitchen, a yard, 2 bathrooms, a balcony.

The study sits between the master and other bedrooms; living space is at the left and the yard adjoins the kitchen.

Block 9View full size

Luxury Collection 3 plans

Type C3

3-bedroom

947 sqft

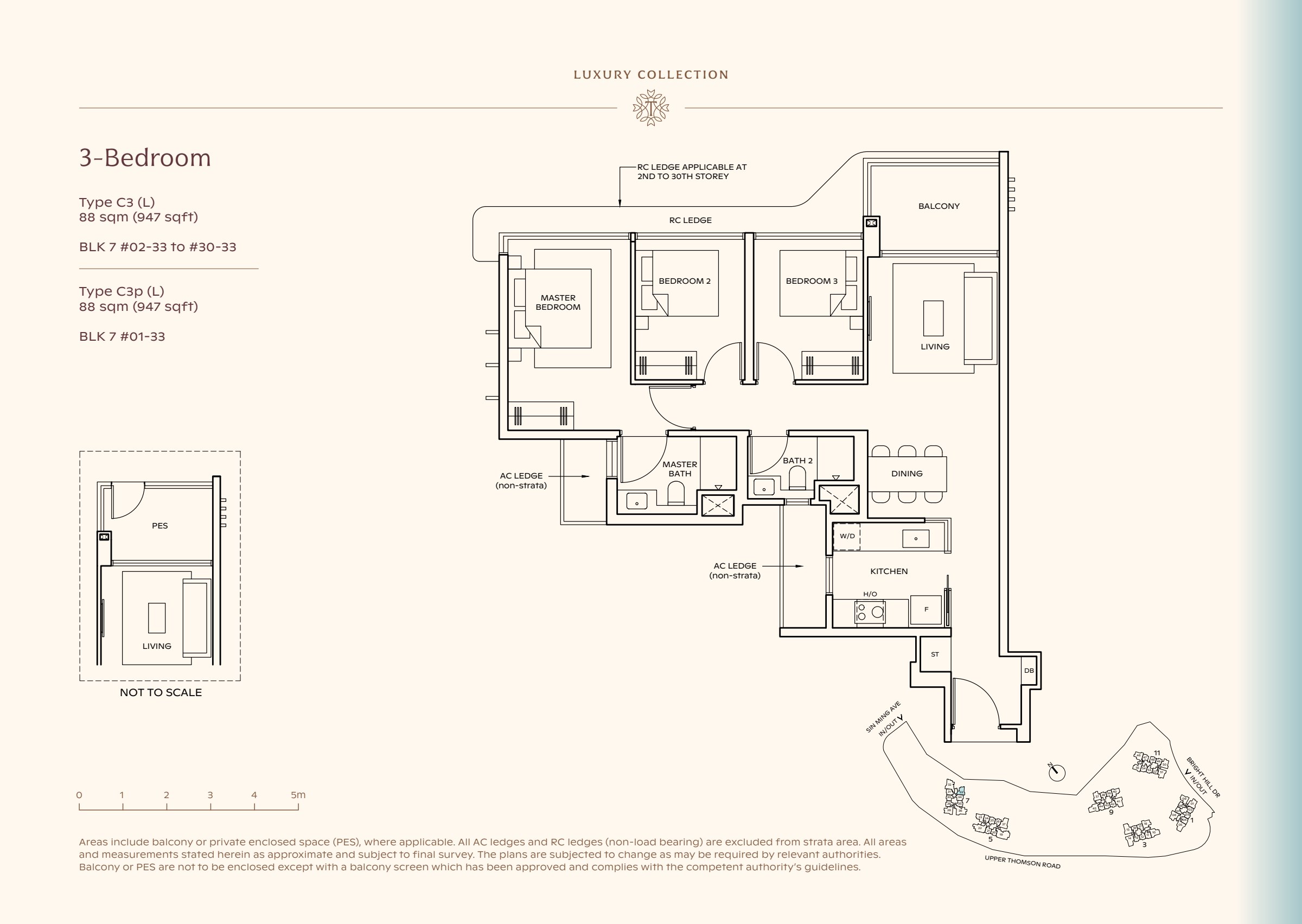

Luxury Collection type C3, 947 sqft. Three bedrooms line the left side of the plan, with the master at the far end and living space at the right. 3 bedrooms, living and dining space, a kitchen, 2 bathrooms, a balcony.

Three bedrooms line the left side of the plan, with the master at the far end and living space at the right.

Block 7View full size

Type C5

3-bedroom

947 sqft

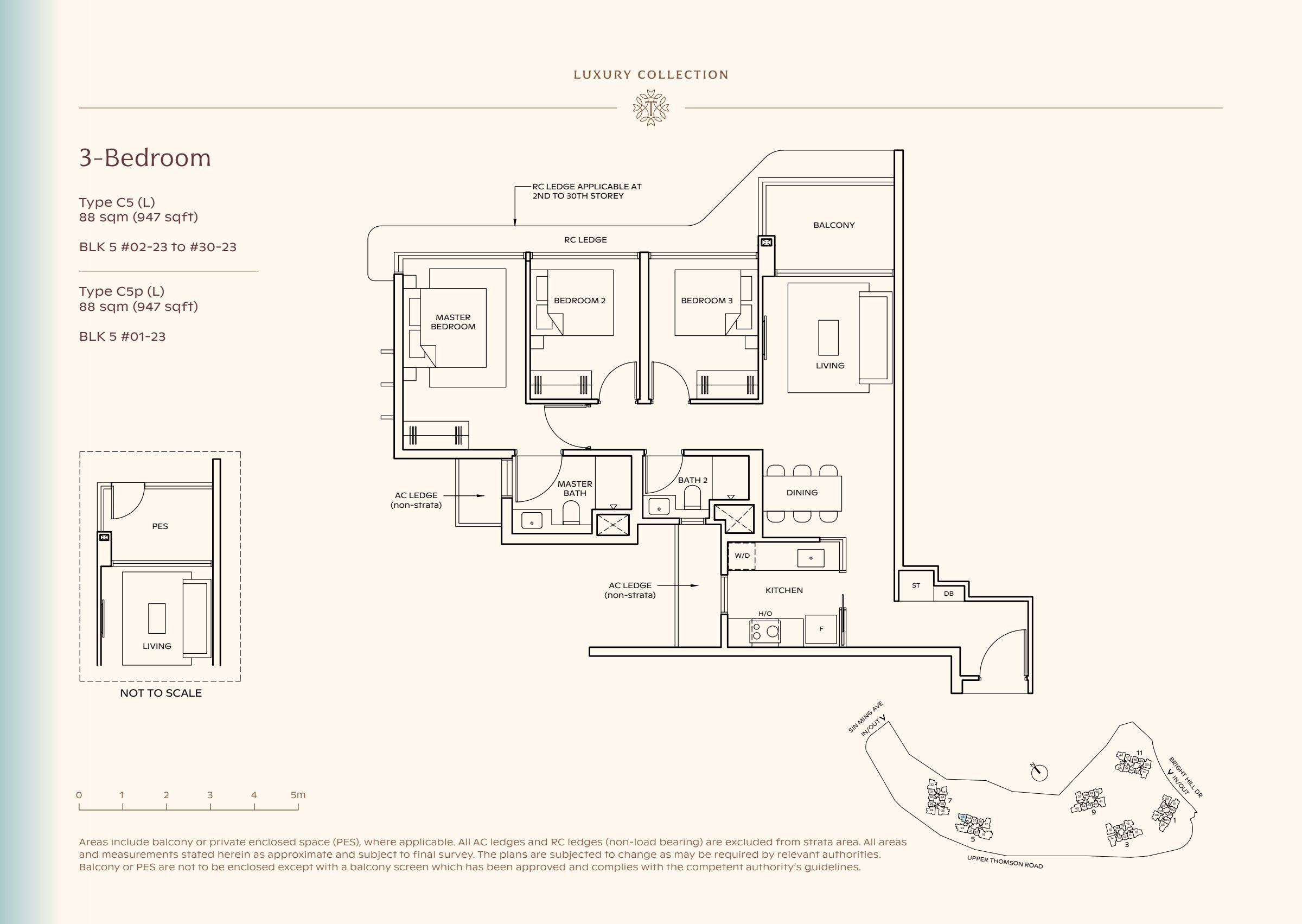

Luxury Collection type C5, 947 sqft. Three bedrooms line the left side of the plan, with the master at the far end and living space at the right. 3 bedrooms, living and dining space, a kitchen, 2 bathrooms, a balcony.

Three bedrooms line the left side of the plan, with the master at the far end and living space at the right.

Block 5View full size

Type CP7

3-bedroom Premium

1,055 sqft

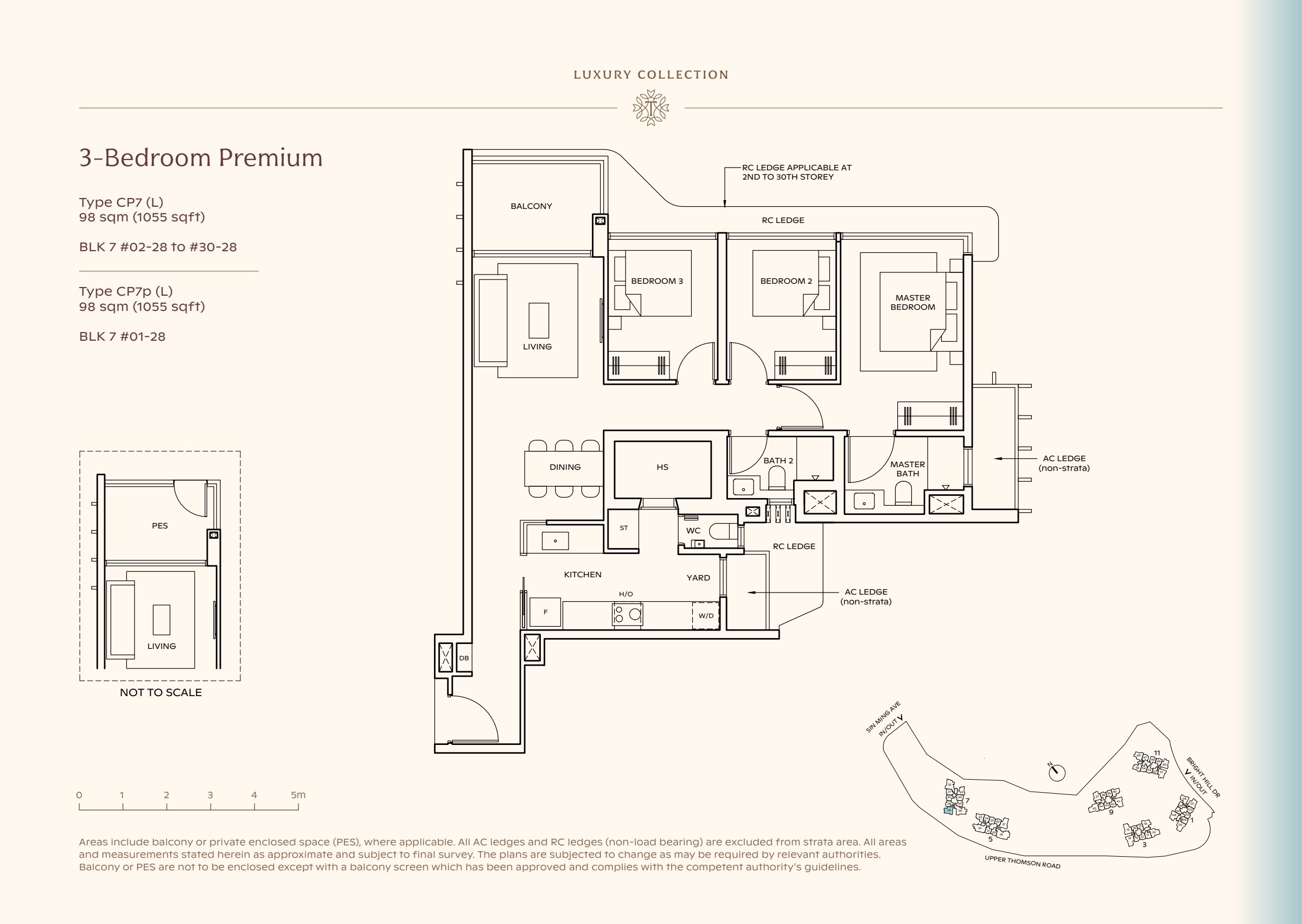

Luxury Collection type CP7, 1055 sqft. Three bedrooms line the right side of the plan; living space is at the left and the yard adjoins the kitchen. 3 bedrooms, living and dining space, a kitchen, a yard, 2 bathrooms, a balcony.

Three bedrooms line the right side of the plan; living space is at the left and the yard adjoins the kitchen.

Block 7View full size
4 bedrooms7 layouts

Classic Collection 3 plans

Type D1

4-bedroom

1,238 sqft

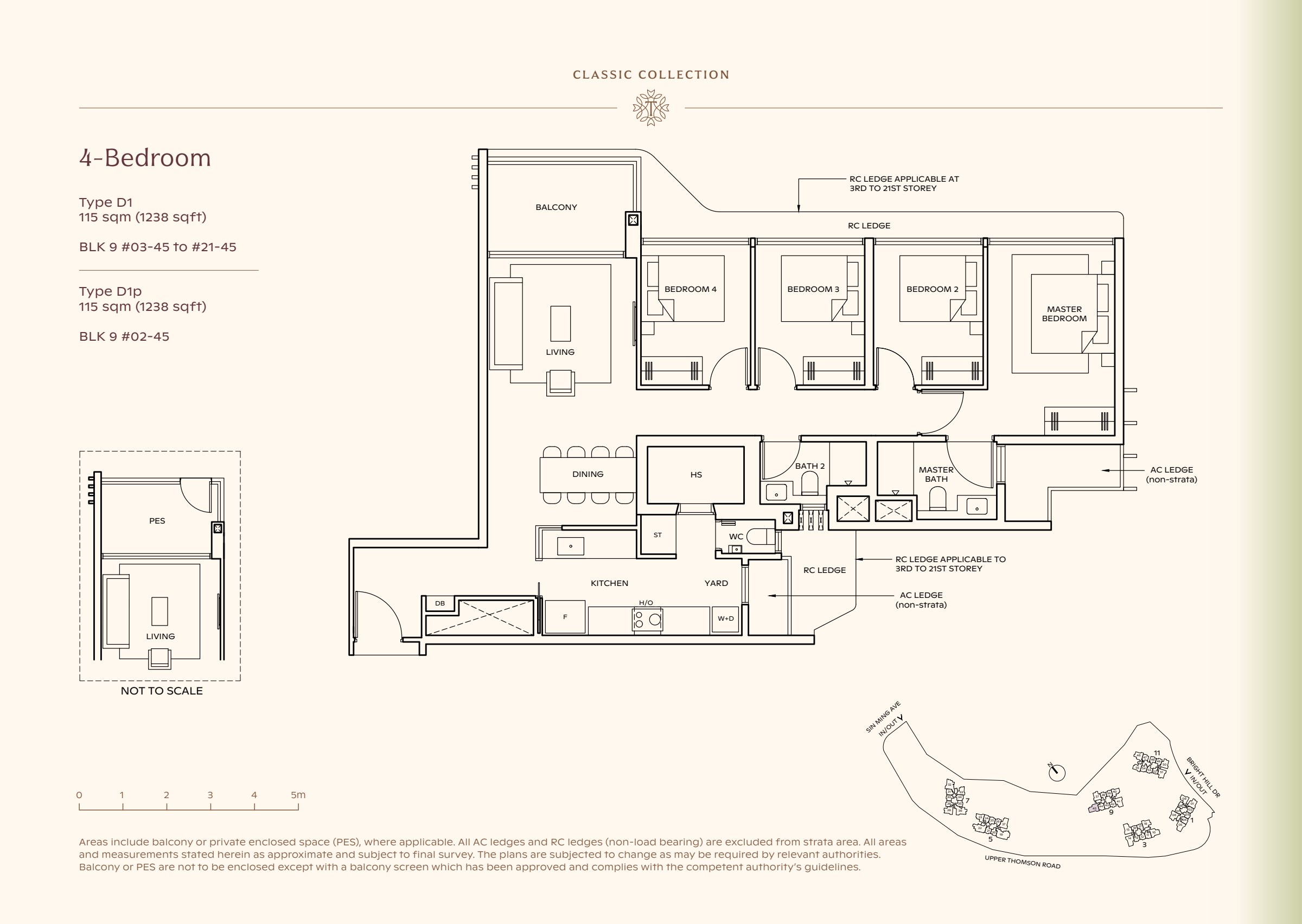

Classic Collection type D1, 1238 sqft. Four bedrooms line the right side of the plan, with the master at the far end and living space at the left. 4 bedrooms, living and dining space, a kitchen, a yard, 2 bathrooms, a balcony.

Four bedrooms line the right side of the plan, with the master at the far end and living space at the left.

Block 9View full size

Type D2

4-bedroom

1,238 sqft

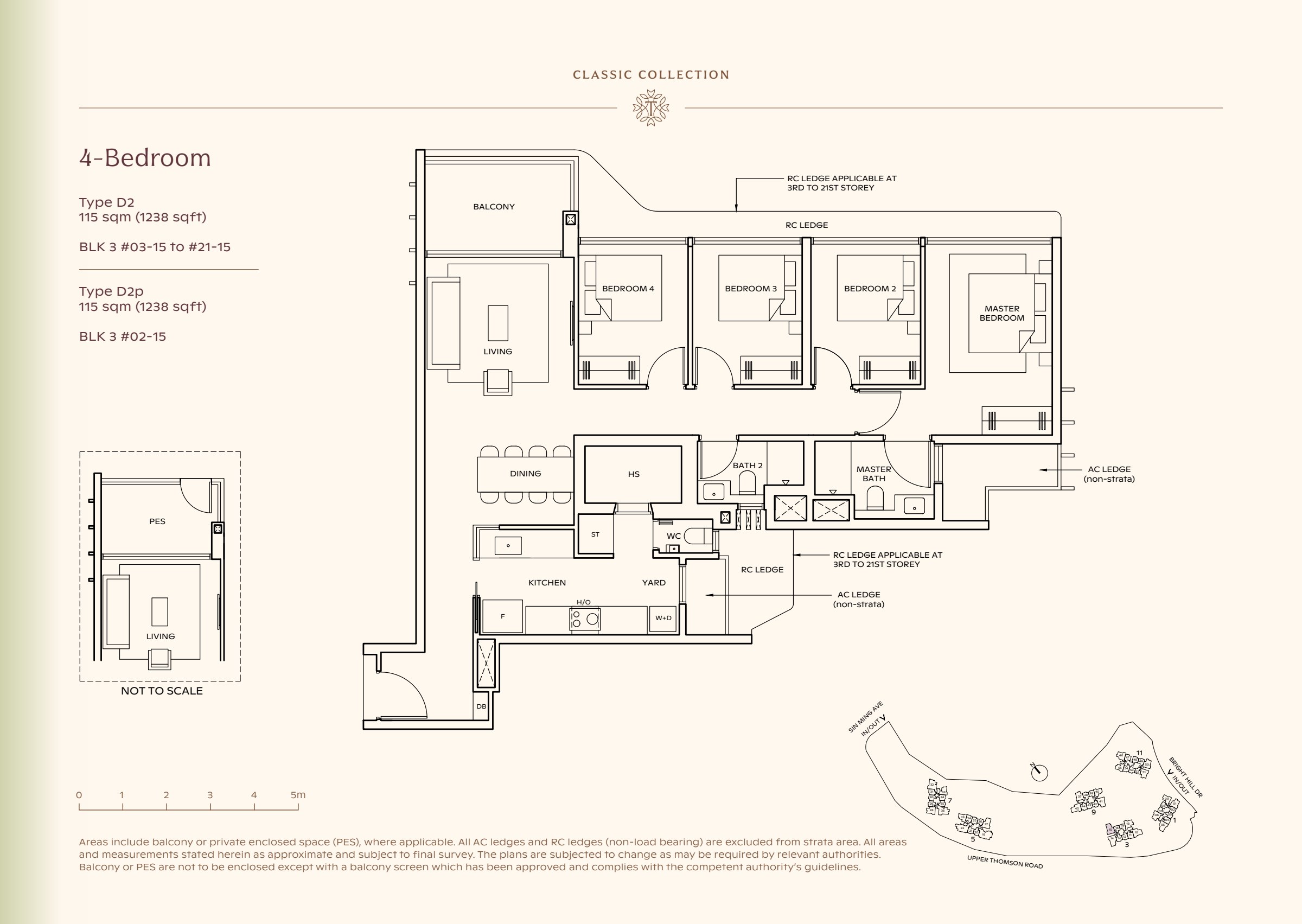

Classic Collection type D2, 1238 sqft. Four bedrooms line the right side of the plan, with the master at the far end and living space at the left. 4 bedrooms, living and dining space, a kitchen, a yard, 2 bathrooms, a balcony.

Four bedrooms line the right side of the plan, with the master at the far end and living space at the left.

Block 3View full size

Type D3

4-bedroom

1,238 sqft

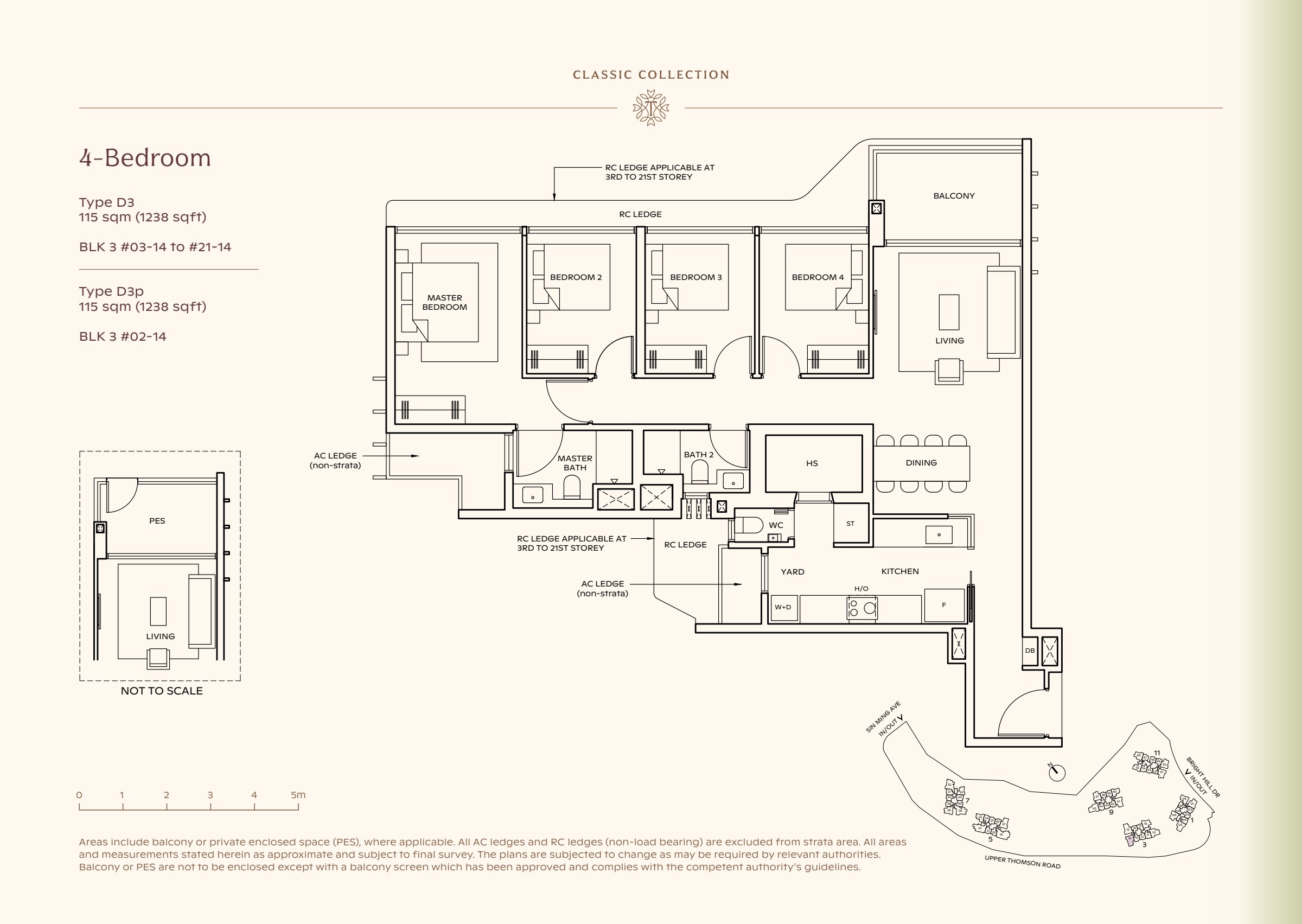

Classic Collection type D3, 1238 sqft. Four bedrooms line the left side of the plan, with the master at the far end and living space at the right. 4 bedrooms, living and dining space, a kitchen, a yard, 2 bathrooms, a balcony.

Four bedrooms line the left side of the plan, with the master at the far end and living space at the right.

Block 3View full size

Luxury Collection 4 plans

Type D4

4-bedroom, common lift

1,238 sqft

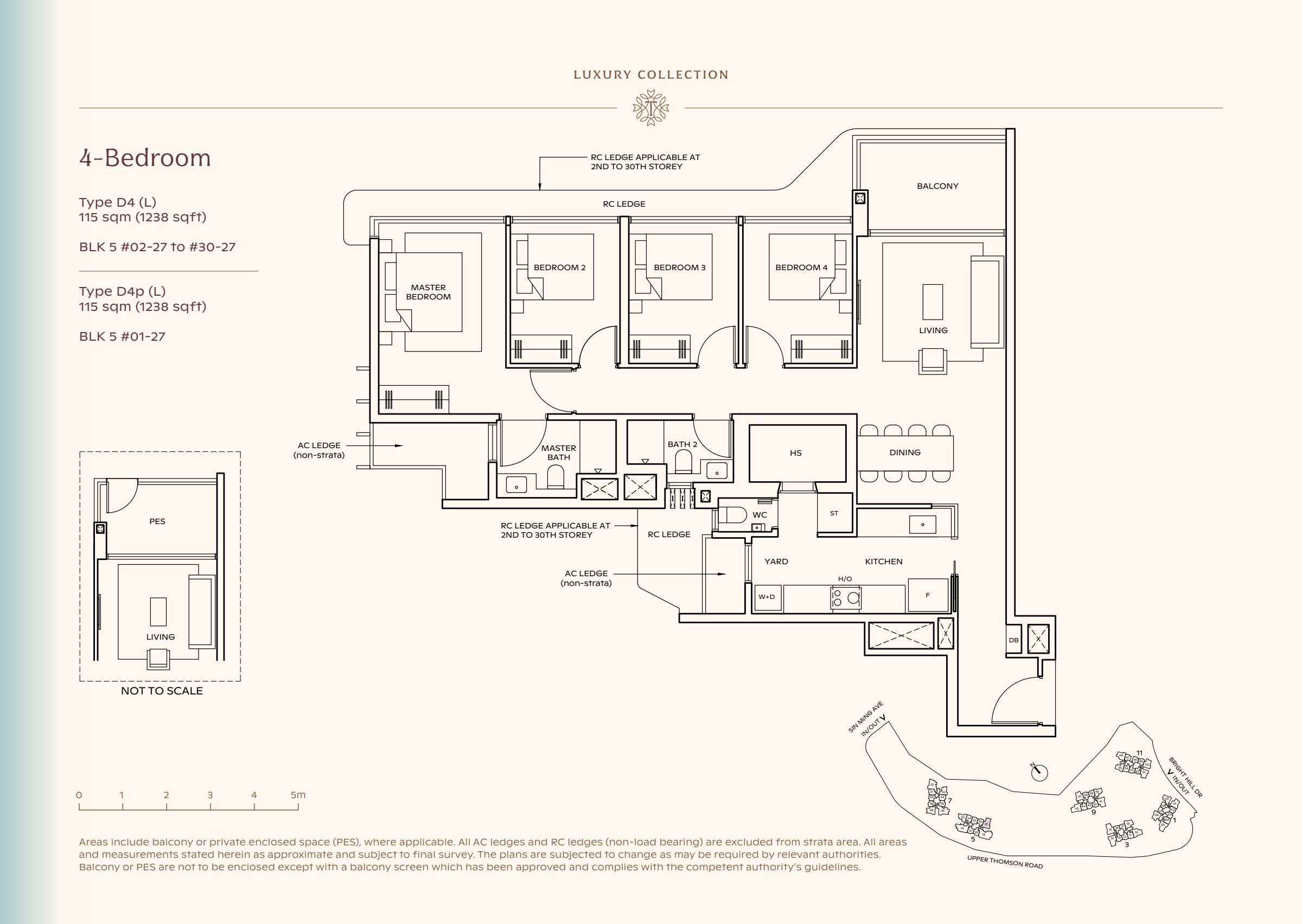

Luxury Collection type D4, 1238 sqft. Four bedrooms line the left side of the plan, with the master at the far end and living space at the right. 4 bedrooms, living and dining space, a kitchen, a yard, 2 bathrooms, a balcony.

Four bedrooms line the left side of the plan, with the master at the far end and living space at the right.

Block 5View full size

Type DP1

4-bedroom Premium, private lift

1,367 sqft

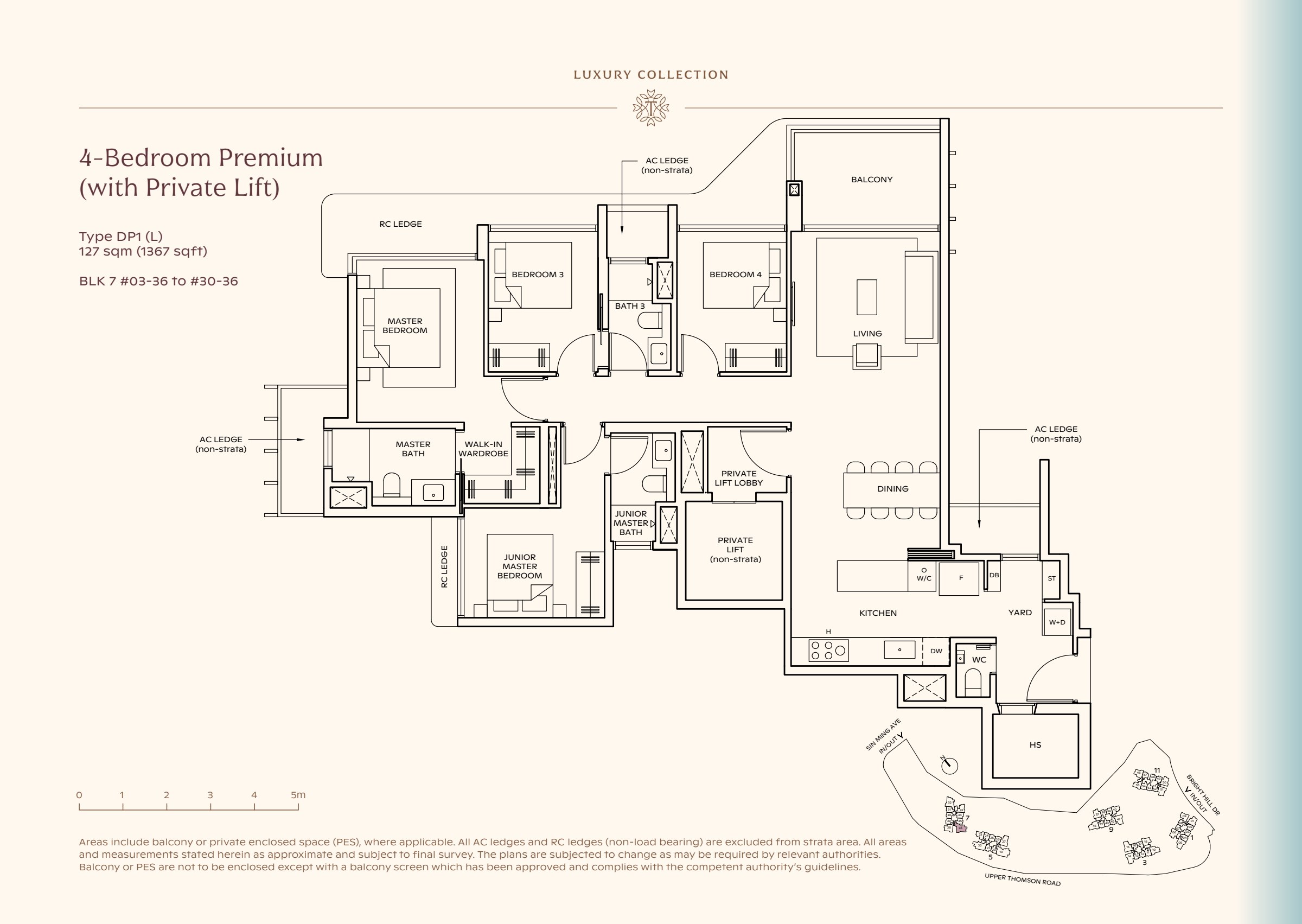

Luxury Collection type DP1, 1367 sqft. The master and junior master are on the left; two more bedrooms lead toward living space on the right, with the private lift near dining. 4 bedrooms, living and dining space, a kitchen, a yard, 3 bathrooms, a private lift lobby, a balcony.

The master and junior master are on the left; two more bedrooms lead toward living space on the right, with the private lift near dining.

Block 7View full size

Type DP2

4-bedroom Premium, private lift

1,367 sqft

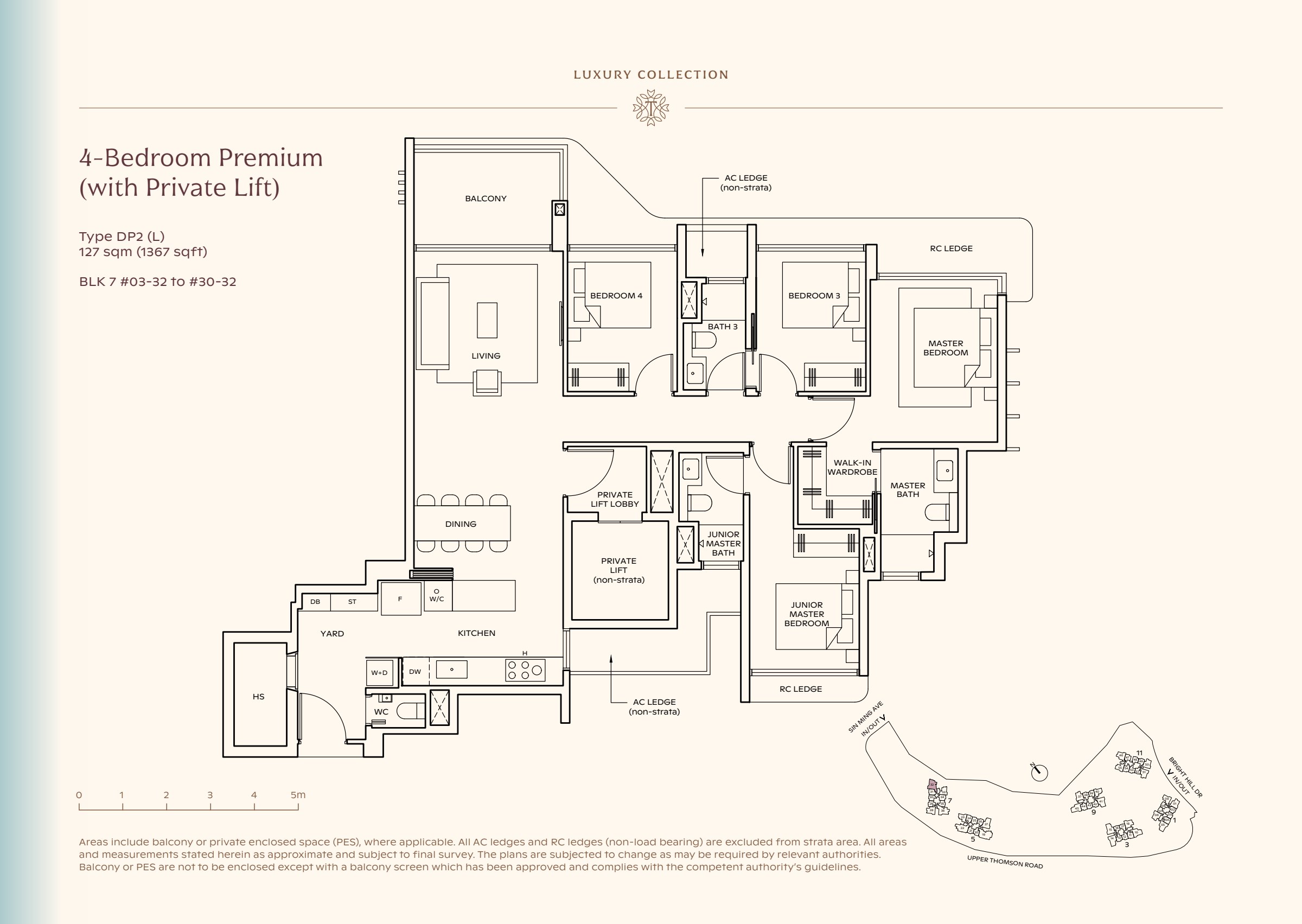

Luxury Collection type DP2, 1367 sqft. The master and junior master are on the right; two more bedrooms lead toward living space on the left, with the private lift near dining. 4 bedrooms, living and dining space, a kitchen, a yard, 3 bathrooms, a private lift lobby, a balcony.

The master and junior master are on the right; two more bedrooms lead toward living space on the left, with the private lift near dining.

Block 7View full size

Type DPS1

4-bedroom Premium + Study, private lift

1,485 sqft

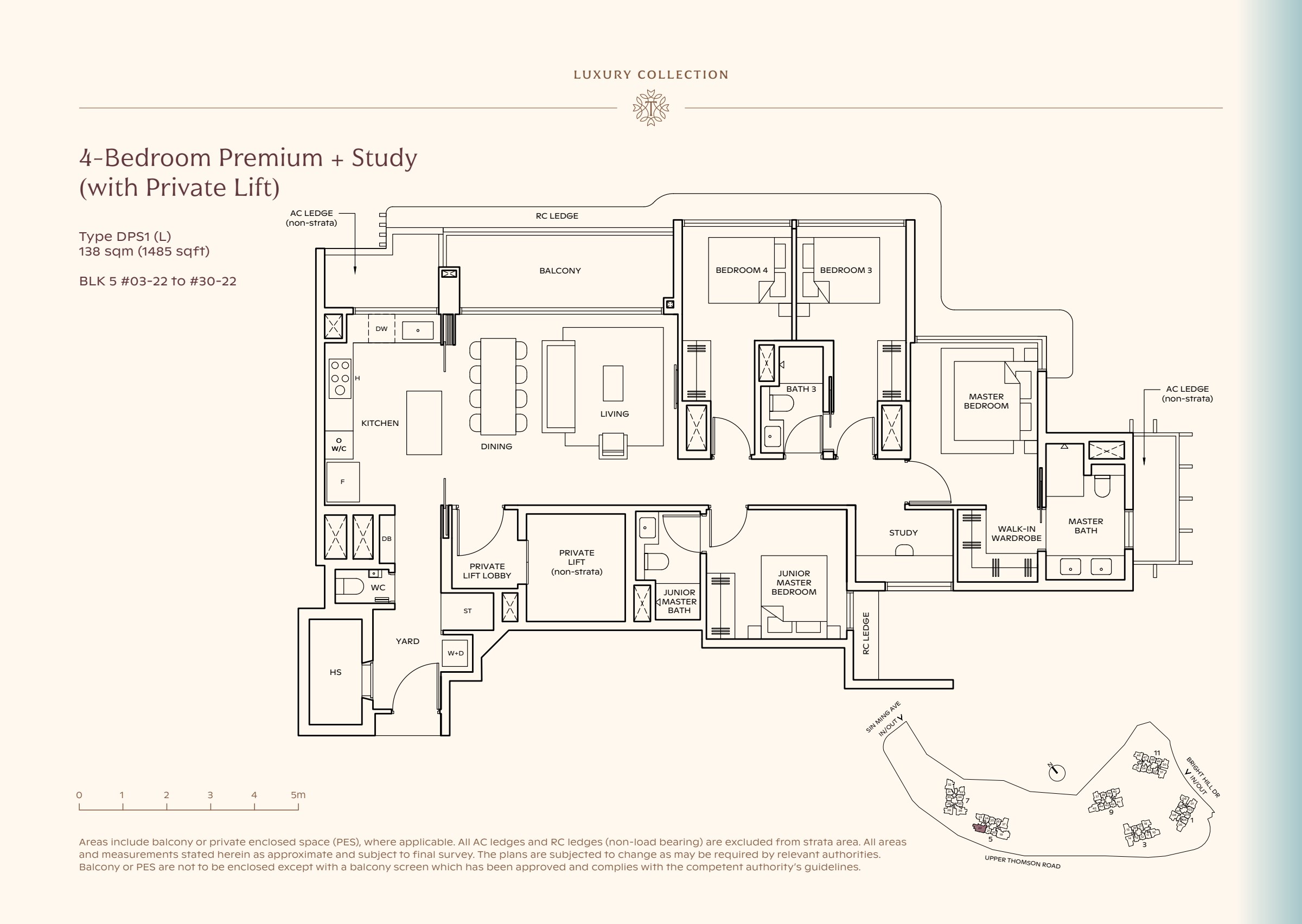

Luxury Collection type DPS1, 1485 sqft. The study lies between the master and junior master; living and dining open toward the balcony, with the private lift beside the kitchen. 4 bedrooms, a study, living and dining space, a kitchen, a yard, 3 bathrooms, a private lift lobby, a balcony.

The study lies between the master and junior master; living and dining open toward the balcony, with the private lift beside the kitchen.

Block 5View full size
5 bedrooms1 layout

Luxury Collection 1 plan

Type E1

5-bedroom Suite, private lift

1,808 sqft

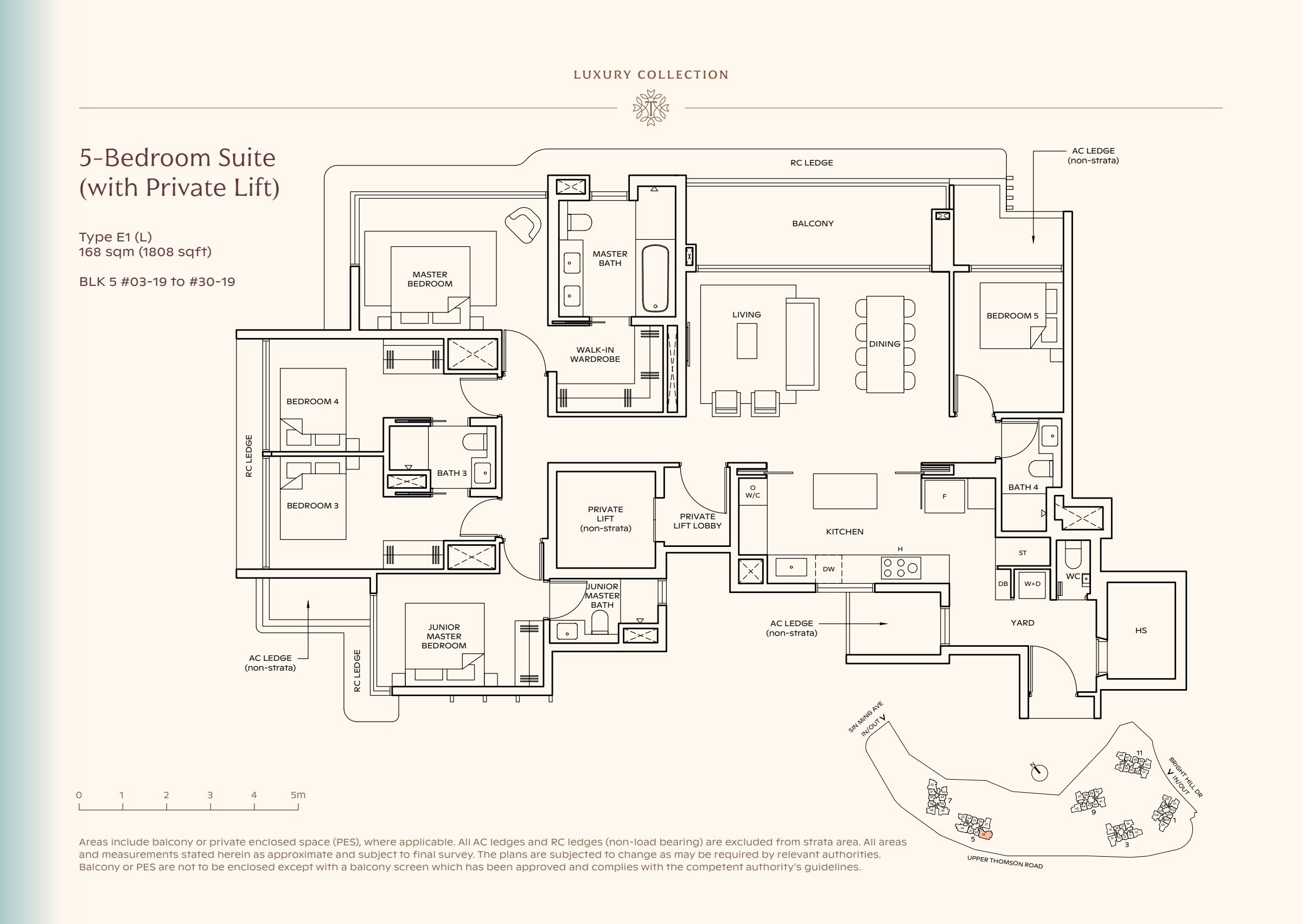

Luxury Collection type E1, 1808 sqft. The master, junior master and two bedrooms occupy one wing; a fifth bedroom sits across the living and dining area, with the private lift beside the kitchen. 5 bedrooms, living and dining space, a kitchen, a yard, 4 bathrooms, a private lift lobby, a balcony.

The master, junior master and two bedrooms occupy one wing; a fifth bedroom sits across the living and dining area, with the private lift beside the kitchen.

Block 5View full size

A layout worth talking through.

Tell me which plans catch your eye. I can help you compare their orientation, block position and estimated budget.
